The KY-PZ100 is a robotic pan, tilt and zoom video production camera.
It’s the first PTZ camera that features JVC’s unique IP communications engine providing network connection via WiFi*, 4G-LTE*, or cabled LAN. It’s designed to be used as a stand alone remote camera or as part of a multi-camera system in both studio and field environments. In addition to its 3G-SDI and HDMI outputs, it is also capable of reliably streaming 1080i/60, 1080p, 720p, and 360p video with 2-channel audio–all with minimal latency and forward error correction.
Features
- 1/2.8″ CMOS Sensor, 1080i/p, 720p
- Remote Pan, Tilt, and Zoom
- 30x Optical Zoom
- 0.01 Lux in LoLux Mode
- 3G-SDI and HDMI Output
- Wireless Streaming (Requires Adapter)
- LAN Streaming and POE
- Micro SDHC/SDXC memory card recording (H.264 50Mbps)
- RS-232C, RS422, IP Control
- 100+ Programmable Presets and Positions
- Ceiling, Desktop, or Tripod Mount
Specifications
| Camera |
|---|
| Minimum Illumination |
1.4 lx (50IRE, F1.6, 30 fps)
|
|---|
| Sensor |
1/2.8" CMOS Image Sensor
|
|---|
|
| Shutter |
|---|
| Remote Control |
LAN IP
RS-232C
RS-422
|
|---|
|
| Recording |
|---|
| Resolution |
Approx. 2.2 Megapixels
|
|---|
|
| Video Streaming |
|---|
|
|

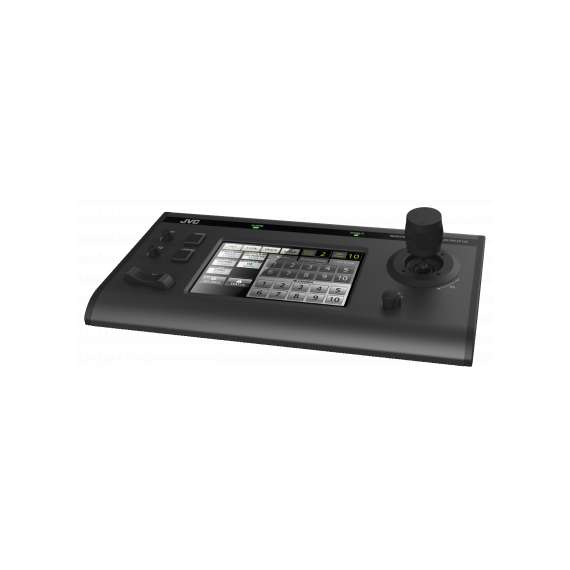

| Remote Control |
|---|
| Assignable Functions |
Control Lever F3: Zoom, Iris, Focus, no function
Control Lever: Up, Down/Left, Right, Pan/Tilt
Rotary Switch F1/F2: WB R/B, AE Level, Speed (Pan/Tilt), Shutter, Gain, Iris, Focus, Detail
User Button (User1/User2): Exposure (Auto/Shutter/Iris/Manual) White Balance (FAW/AWB/3200K/5600K/Manual) AWB Trigger, Focus (Auto/Manual), Streaming, Rec
|
|---|
| IP Control |
Maximum: 100 cameras
|
|---|
| LCD Panel |
Touchscreen
|
|---|
| Number of Preset Positions |
Maximum: 100 positions
|
|---|
| Remote Control Dimensions |
13.8 x 4.3 x 7.2" (35.0 x 11.0 x 18.2 cm)
|
|---|
| Remote Control LAN Terminal |
10BASE-T / 100BASE-TX
|
|---|
| Remote Control Power |
12 VDC (AC adapter)
|
|---|
| Remote Control Power Input |
DC 12 V (supplied AC adapter only)
|
|---|
| Remote Control Tally |
9-Pin D-Sub Input/Output: 3-pin/5-pin, 4-pin/4-pin, 5-pin/3-pin, variable
|
|---|
| Remote Control Weight |
4.6 lb (2.1 kg)
|
|---|
| Remote Power Consumption |
0.6 A (AC adapter)
|
|---|
| Remote Temperature & Humidity |
20 to 90% RH, non-condensing
32 to 104°F (0 to 40°C)
|
|---|
| Supported Camera |
KY-PZ100
|
|---|
|
| Packaging Information |
|---|
| Box Dimensions (LxWxH) |
12.1 x 11.9 x 9.9"
|
|---|
| Package Weight |
7.4 lb
|
|---|
|
| More |
|---|
| Streaming capability |
1080i/60
1080p
270p
540p
720
|
|---|
|
