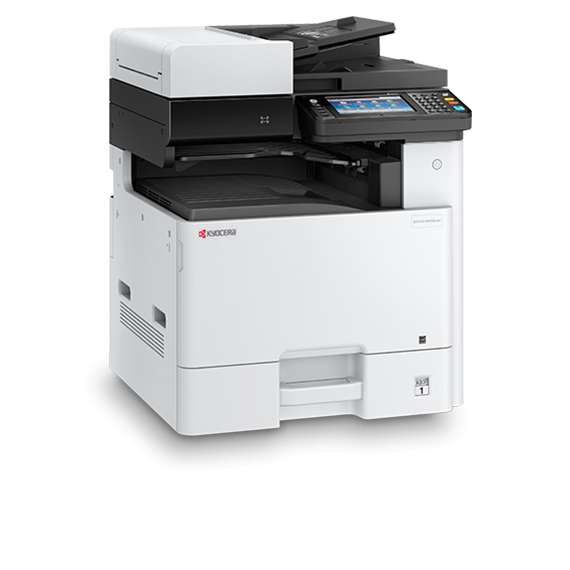

Kyocera ECOSYS M8130cidn Colour Multifunctional Printer

Overview

An A4/A3 colour Multi-Functional Product with 30 page per minute productivity (in A4). It’s ideal for small teams due to the machine’s functionality, usability and compact size.

Minimum installation and operation requirements.
Easy-to-use full-colour touchscreen panel.
Long-life components provide exceptional reliability.
HyPAS solution platform enables powerful customisations.

Engine speed
Up to 30/15 pages A4/A3 per minute in colour and b/w

Resolution
1200x1200 dpi (print), 600x600 (scan/copy)

Dimensions (W x D x H)
590 x 590 x 753 mm (with standard Document Processor)

ECOSYS makes your office more sustainable and efficient
Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks
Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

A3 and A4 printers for all needs
High quality, high reliability and high efficiency are essential.

ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

Specification

General type
Colour multifunctional for A3 format
Engine speed
Up to 30/15 pages A4/A3 per minute in colour and b/w
Warm-up time
Approx. 30 seconds or less
Power consumption
Sleep-mode: 0.5 W, Stand-by: 70 W, Copying/Printing: 600 W
Warranty
1-year warranty as standard

Paper Handling

Input capacity
100-sheet multi-purpose tray, 60–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm) 500-sheet standard universal paper cassette, 60–256 g/m², A3, A4, A5, B5, Ledger, Letter, Legal, Folio
Max. input capacity with options
1,600 sheets
Duplex unit
Duplex as standard supports 60–256 g/m²
Max. output capacity
Max. 280 sheets; 250 sheets face-down (main tray), plus 30 sheets (standard Job Separator Tray)
Document processor
Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)

Print

Processor
ARM Cortex-A9 Dual core1.2 GHz
Fonts
101 outline fonts (PCL 6, KPDL3, Windows Vista), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode PDF417 under PRESCRIBE (PCL and other barcodes available as options)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Applicable OS
All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request.

Copy

Max. original size
A3/Ledger
Continuous copy
1 - 9.999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
5 Reductions/5 Enlargements
Image adjustments
Text, photo, text + photo, map, printed document
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip blank page

Scan

Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan-to-USB Host, Network TWAIN, WIA, WSD scan
Scan speed
50ipm (300dpi, A4, b/w, colour)
Scan features
Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
600, 400, 300, 200 (256 greyscales per colour)
Max. scan size
A3/Ledger
File type
TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1, PDF/A-2
Original recognition
Text, Photo, Text + Photo, light text, optimised for OCR

Fax

Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds or less
Transmission speed
33.6 seconds or less
Scanning density
Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 8 dot/mm x 7.7 line/mm
Max. original size
A3/Ledger
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast
