Luxman M-200 Stereo Power Amplifier Blaster

Write a review

$277.78

BrandLuxman ConditionNew Warranty IssuerManufacturer

Description
Features
Reviews

The real pleasure of quality audio is its ability to unleash the energy of the sound you may hear in a concert hall or live venue into the home listening environment. That deep musical experience and impression evoke interest and drive the inquiring mind, almost to obsession. The M-200 is a stereo power amplifier which condenses LUXMAN's commitment to circuit and function into a B4 sized compact chassis.
The M-200 amplifier circuitry has a discrete structure and features high performance components equivalent to those used in Luxman’s 500 series integrated amplifiers, enabling delicate and rich musical expression. Large capacity PC150W power transistors are mounted in push-pull configuration adding increased speaker drivability. The high quality power supply enables the M-200 to achieve powerful musical expression and spacious sound reproduction.

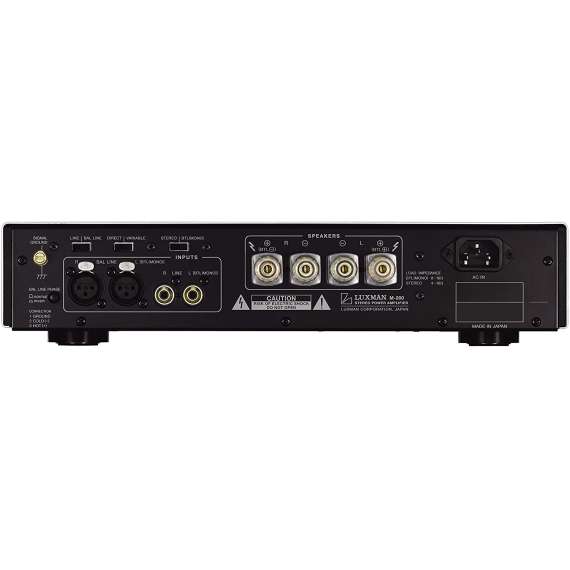

The M-200 is equipped with balanced XLR inputs which enable high quality balanced signal transmission, excellent performance and resistance to noise. There is also a phase inversion switch which is convenient when connecting other equipment with different wiring specifications. The front panel features two multifunctional display windows with 3 stage brightness & on/off control. The displays act as power meters and also show other amplifier settings when needed.
In BTL mode, the M-200 can combine it's output power to act as a 70 watt (8 Ohm) monaural amplifier to drive lower impedance speakers or large diameter floor standing speakers. Also, the listener can enjoy high quality bi-amp reproduction when the M-200 is used in conjunction with a suitable preamp or pre-main amp. . The cabinet features a loop-less chassis structure which suppresses ground impedance effects caused by chassis current.
Specifications: >Rated Output: 25W+25W (8 Ohm)/Stereo, 35W+35W(4 Ohm)/Stereo, 70W (8 Ohm)/BTL Monaural >Gain: Stereo 23dB, BTL Monaural 29dB. >Sensitivity: 1.0V/25W (8 Ohm) >Impedance: LINE 16kOhm, BAL.LINE 33kOhm >Frequency Response: 20Hz-20kHz (+0, -0.2dB), 10Hz-100kHz (+0, -3.0dB) >Total Harmonic Distortion: 0.005% (1kHz/8 Ohm/25W), 0.06% (20Hz-20kHz/8 Ohm/12.5W) >S/N Ratio: Line 107dB or over, Balance Line 102dB or over >Damping Factor: 100 >Dimensions (W x H x D): 364 x 81 x 297 (mm).
