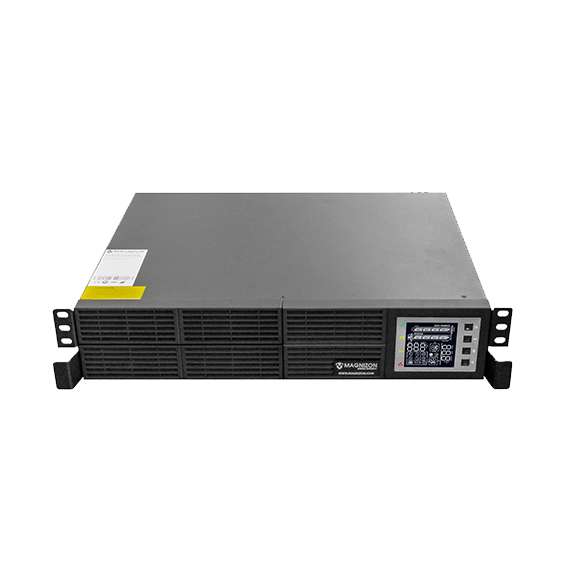

Magnizon MU1000RM2U True Online Tower/Rackmount Smart Ups
MU1000RM2U
Magnizon MU1000RM2U 1KVA/1000W smart on-line, double-conversion UPS system in 2U total rack/tower configuration
Maintains full-time pure sine wave output within 2% of selectable 220/230/240V nominal during brownouts as low 110V and over voltages as high as 300V
Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
Online double conversion technology with advanced DSP control
Wide input voltage range(110?300VAC) can adapt to different power grid environment
DC start (cold start) function
Input PFC filters
Built-in static bypass switches
Input power factor 1.0 and unity Output power factor
Strong over load capacity
Supporting rack/tower structure, high power density saving space
Built-in protections: Over voltage, Over load, Over current, Battery overcharge, Battery deep discharge protection, battery low voltage protection
LCD display and LED indicator show detailed UPS status and parameters
Friendly man-machine interface, Simple setting Output Voltage, Frequency parameter and Bypass function on the display
Lightning, surge, short -circuit, network/fax/modem surge protection
Smart RS232 communication with monitoring software
Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
Supports 50/60Hz operation for worldwide frequency compatibility
Expandable runtime is supported with optional BP24V9RM Series for extended backup requirements
Intelligent battery management system with temperature-compensated charging with advanced 4-stage battery charging algorithm extends battery life
Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
Rack mount and tower mount kits included for both Battery pack and UPS module
Adjustable telescopic rail kits suit any depth of the rack
LED / LCD display panel rotates for viewing in rackmount or tower configurations
Network-grade AC surge and noise suppression
External battery packs are field replaceable and hot swappable
Package Includes
MU1000RM2U, 1KVA 2U power module
Four post compatible, telescopic adjustable rack rail kit -2 sets

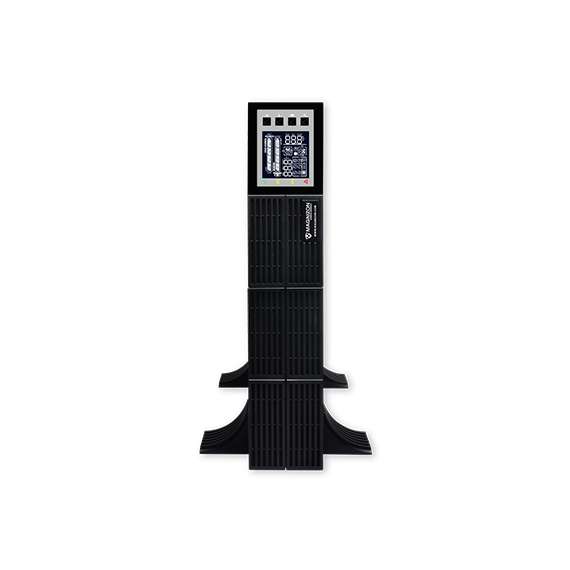

Tower stands for upright tower configuration
RS232 cabling and CD
User manua
Maintains full-time pure sine wave output within 2% of selectable 220/230/240V nominal during brownouts as low 110V and over voltages as high as 300V
Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
Online double conversion technology with advanced DSP control
Wide input voltage range(110?300VAC) can adapt to different power grid environment
DC start (cold start) function
Input PFC filters
Built-in static bypass switches
Input power factor 1.0 and unity Output power factor
Strong over load capacity
Supporting rack/tower structure, high power density saving space
Built-in protections: Over voltage, Over load, Over current, Battery overcharge, Battery deep discharge protection, battery low voltage protection
LCD display and LED indicator show detailed UPS status and parameters
Friendly man-machine interface, Simple setting Output Voltage, Frequency parameter and Bypass function on the display
Lightning, surge, short -circuit, network/fax/modem surge protection
Smart RS232 communication with monitoring software
Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
Supports 50/60Hz operation for worldwide frequency compatibility
Expandable runtime is supported with optional BP24V9RM Series for extended backup requirements
Intelligent battery management system with temperature-compensated charging with advanced 4-stage battery charging algorithm extends battery life
Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
Rack mount and tower mount kits included for both Battery pack and UPS module
Adjustable telescopic rail kits suit any depth of the rack
LED / LCD display panel rotates for viewing in rackmount or tower configurations
Network-grade AC surge and noise suppression
External battery packs are field replaceable and hot swappable
Package Includes
MU1000RM2U, 1KVA 2U power module
Four post compatible, telescopic adjustable rack rail kit -2 sets
Tower stands for upright tower configuration
RS232 cabling and CD
User manua
