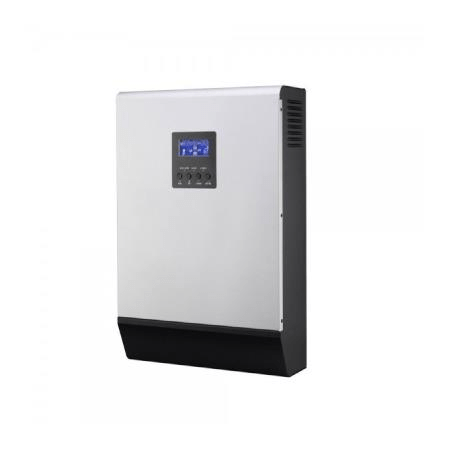

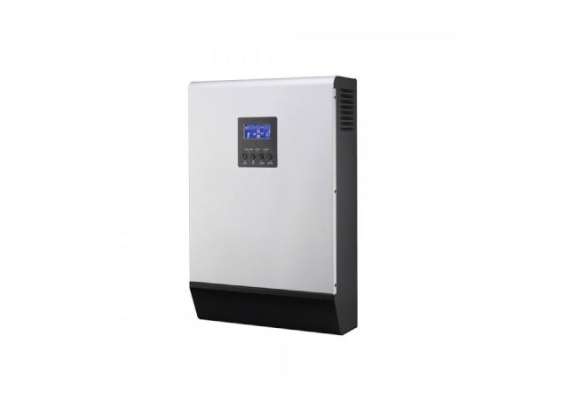

MECER 3 Kva Inverter
Model:SOL-I-AX-3KP
Rated Power: 3000VA / 2400
Parallel Capability: Yes, Up to 9 units
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
Surge Power: 6000VA
Efficiency :(Peak) 90%
Transfer Time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform: Pure sine wave
BATTERY
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 30 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger type: MPPT
Maximum PV Array Power 1000 VDC
MPPT Range @Operating Voltage: 30 VDC~80 VDC
Maximum PV Array Open Circuit Voltage: 100VDC
Maximum Solar Charge Current 40 A
Maximum AC Charge Current 60 A
Maximum Charge Current 100 A
PHYSICAL
Dimension, D x W x H (mm) 100 x 272 x 385
Net Weight (kgs) 7.5
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
