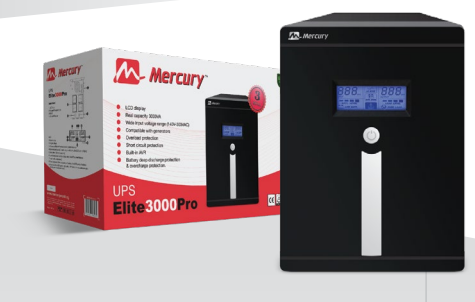

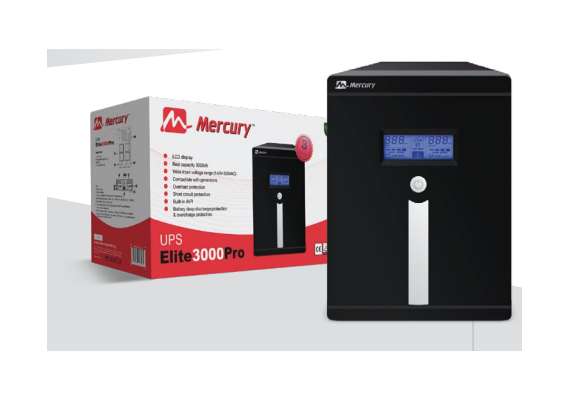

Mercury Elite 3000U SMART Offline UK Plug 3000VA/1800W UPS
Elite-3000U
Model Elite 3000 Pro
Capacity 3000VA
Input
Rating Voltage 220-240VAC
Voltage range 140-300VAC
Frequency 50/60Hz
Current 16.0A Max.
Output
Voltage regulation (Batt. Mode) ±10%
Frequency 50/60Hz
Frequency regulation (Batt. Mode) ±1Hz
Waveform Simulated sine wave
Output sockets 4 x Universal
Battery
Battery Type Sealed lead acid, maintenance free
Nominal voltage (VDC) 48VDC
Number x Capacity (Ah) of battery 4 x 12V/9Ah
Battery recharge time 6-8 hours to 90%
after complete discharge
Transfer time Typical 4-8ms, 13ms Max
Protection Short circuit, Overcharge, Overload,
Over discharge
Communication Interface
RJ45
General
Physical Dimension (LxWxH) 436 x 145 x 211.7mm
Enclosure/protection IP20(dustproof but not waterproof)
Environment
Operating temperature 0-40℃
Noise Level (1M) Less than 55dB
Maximum relative humidity 0-90%(non - condensing)
Capacity 3000VA
Input
Rating Voltage 220-240VAC
Voltage range 140-300VAC
Frequency 50/60Hz
Current 16.0A Max.
Output
Voltage regulation (Batt. Mode) ±10%
Frequency 50/60Hz
Frequency regulation (Batt. Mode) ±1Hz
Waveform Simulated sine wave
Output sockets 4 x Universal
Battery
Battery Type Sealed lead acid, maintenance free
Nominal voltage (VDC) 48VDC
Number x Capacity (Ah) of battery 4 x 12V/9Ah
Battery recharge time 6-8 hours to 90%
after complete discharge
Transfer time Typical 4-8ms, 13ms Max
Protection Short circuit, Overcharge, Overload,
Over discharge
Communication Interface
RJ45
General
Physical Dimension (LxWxH) 436 x 145 x 211.7mm
Enclosure/protection IP20(dustproof but not waterproof)
Environment
Operating temperature 0-40℃
Noise Level (1M) Less than 55dB
Maximum relative humidity 0-90%(non - condensing)
