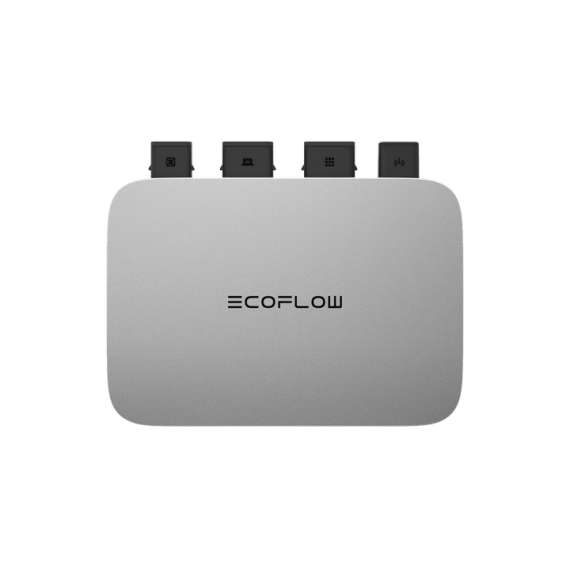

Ecoflow 800W Micro Inverter
800W
Microinverter Specs
Dimension
242*169*33 (mm)
Weight
Approximately 3 kg
PV Input Power
400 W x 2
DC Input Output
600W
Max. Input Voltage
55Vd.c. (PV Port)/ 59Vd.c. (DC Port)
Maximum input current
13 A
AC Output-Grid Tied
800W/600W
Max. AC Output Current
3.7A/2.8A
Max. Charging & Discharging Power
600W
Charging Voltage
30 - 58 Vd.c.
Ingress Protection rating
IP67
Wi-Fi (2.4G)
Frequency range: 20M: 2412 - 2472 MHz / 40M: 2422- 2462 MHz
Maximum output power: ≤ 20 dBm
Bluetooth®
Frequency range: 2402-2480MHz
Maximum output power: ≤ 20 dBm
