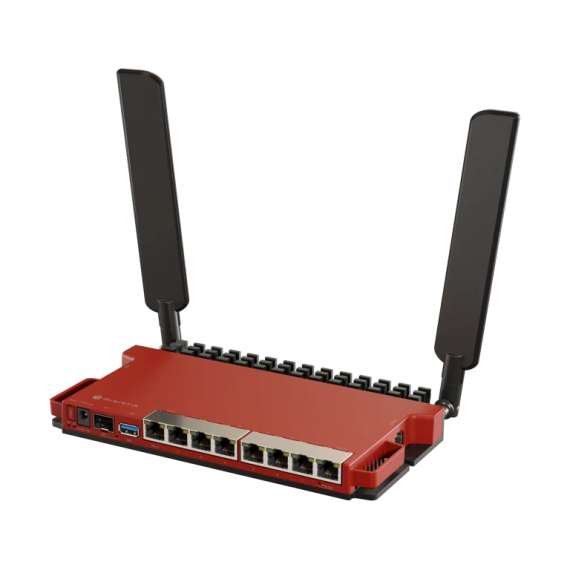

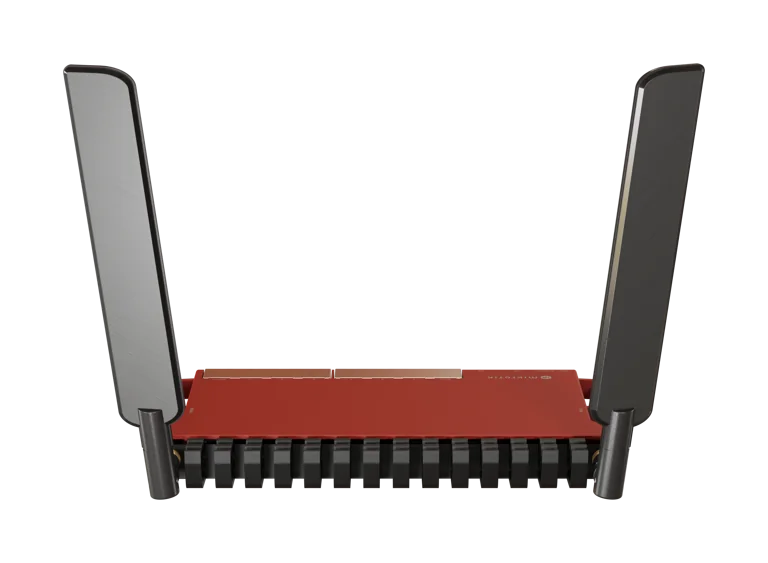

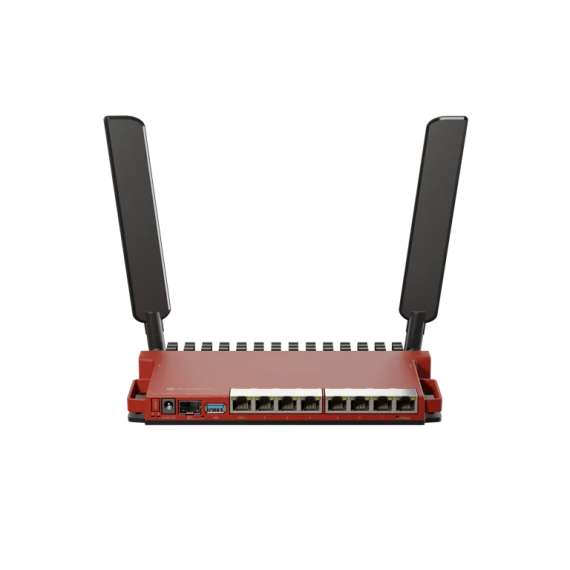

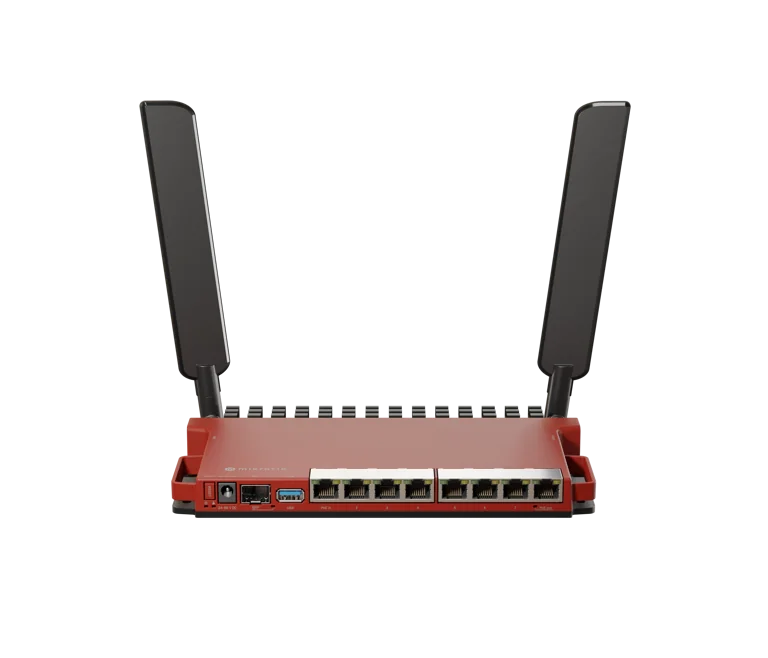

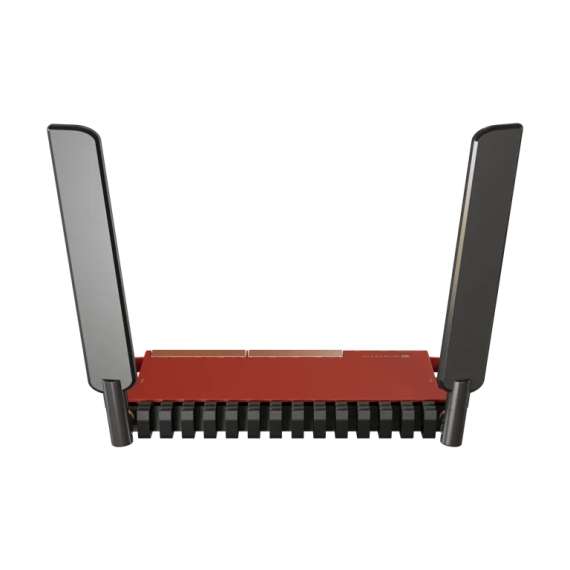

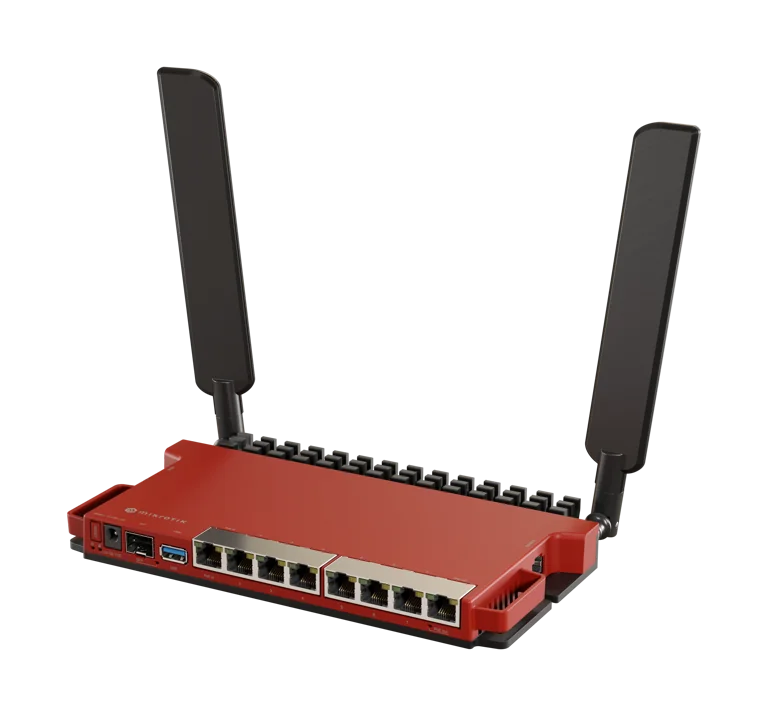

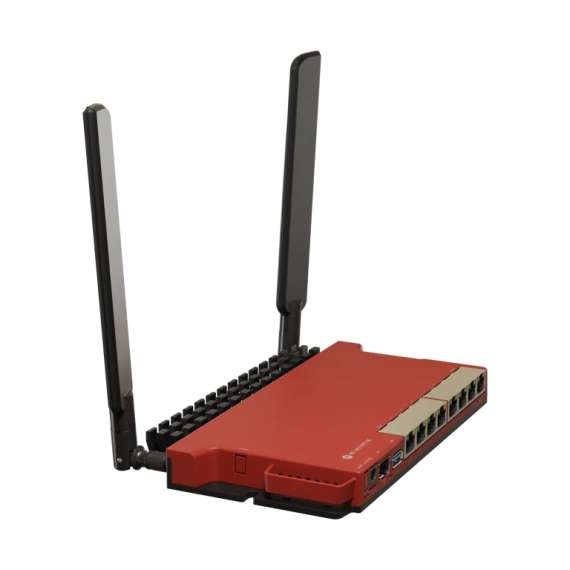

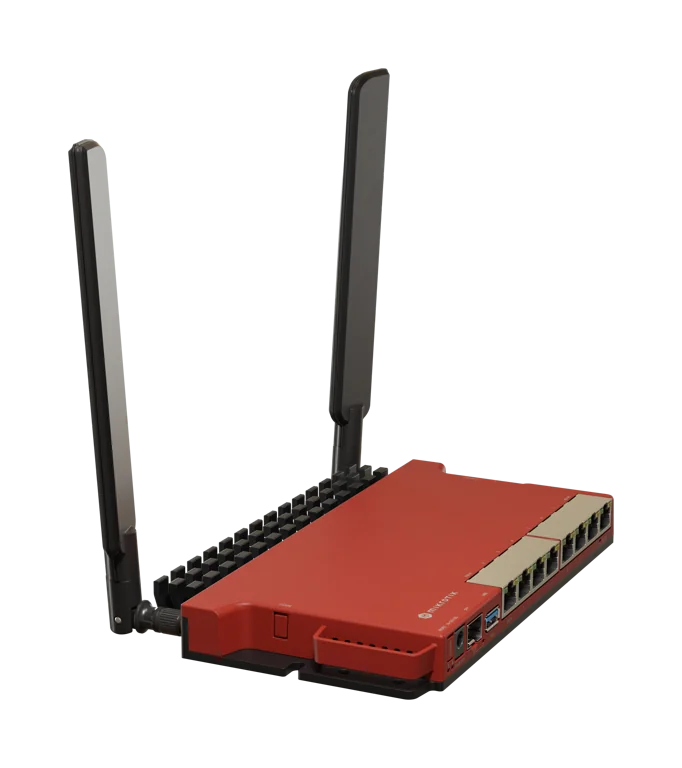

Mikrotik l009UiAS-2HnD-IN RouterBoard
l009UiAS-2HnD-IN
Description
Specifications
- Product codeL009UiGS-2HaxD-IN
- Suggested price$129.00
- ArchitectureARM 32bit
- CPUIPQ-5018
- CPU core count2
- CPU nominal frequency800 MHz
- CPU Threads count2
- Switch chip model88E6190
- RouterOS license5
- Operating SystemRouterOS v7
- Size of RAM512 MB
- Storage size128 MB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-40°C to 70°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate574 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz4
- Wireless 2.4 GHz chip modelIPQ-5018
- Wireless 2.4 GHz generationWi-Fi 6
- WiFi speedAX600
Ethernet
- 10/100/1000 Ethernet ports8
- Number of 1G Ethernet ports with PoE-out1
Fiber
- SFP ports1 (2.5G supported)
Peripherals
- Serial console portRJ45
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB 3.0 type A
- Max USB current (A)1.5
Powering
- Number of DC inputs2 (DC jack, PoE-IN)
- DC jack input Voltage24-56 V
- Max power consumption47 W
- Max power consumption without attachments14 W
- PoE in802.3af/at
- Cooling typePassive
- PoE in input Voltage24-56 V
PoE-out
- PoE-out portsEther8
- PoE outPassive PoE
- Low voltage PoE-Out current limit1 A
- High voltage PoE-Out current limit450 mA
- Max total out (A)1.0 A
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
- IP20
Other
- Mode buttonYes
