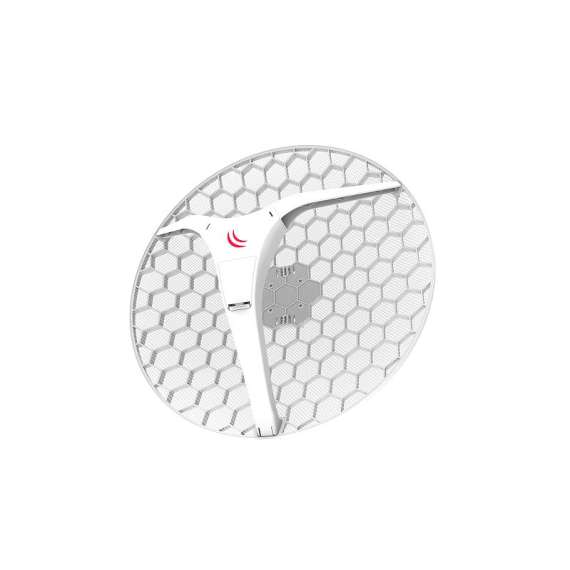

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
Specifications
| Details |
|---|
| Product code |
RBLHG-5HPnD-XL |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
Ø 550 x 245 mm; |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$79.00 |
Powering
| Details |
|---|
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-28 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
7 W |
| FAN count |
Passive |
Wireless specifications
| Details |
|---|
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n |
| Antenna gain dBi for 5 GHz |
27 |
| Wireless 5 GHz chip model |
AR9344 |
| Wireless 5 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports |
1 |
Certification & Approvals
| Details |
|---|
| Certification |
CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
|---|
| 6MBit/s |
28 |
-96 |
| 54MBit/s |
25 |
-80 |
| MCS0 |
28 |
-96 |
| MCS7 |
24 |
-75 |
