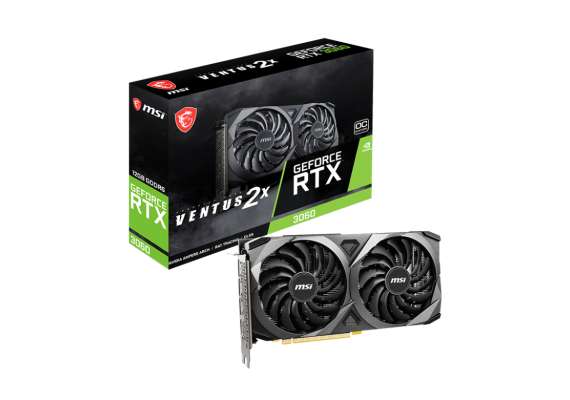

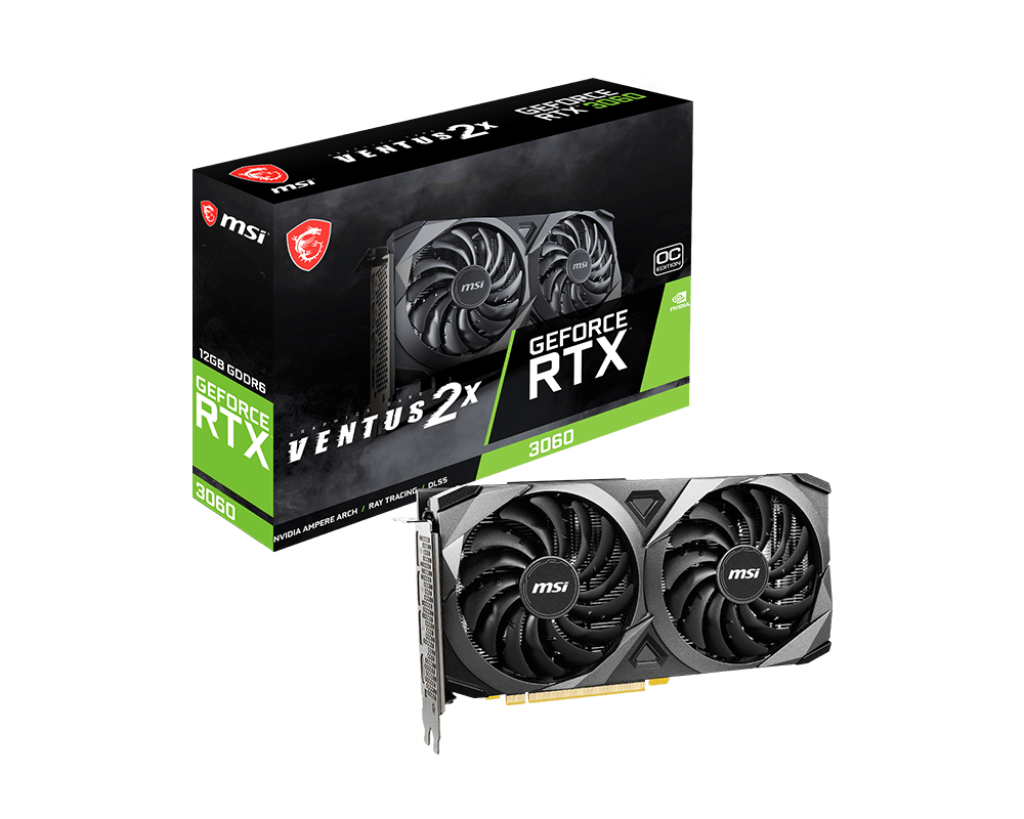

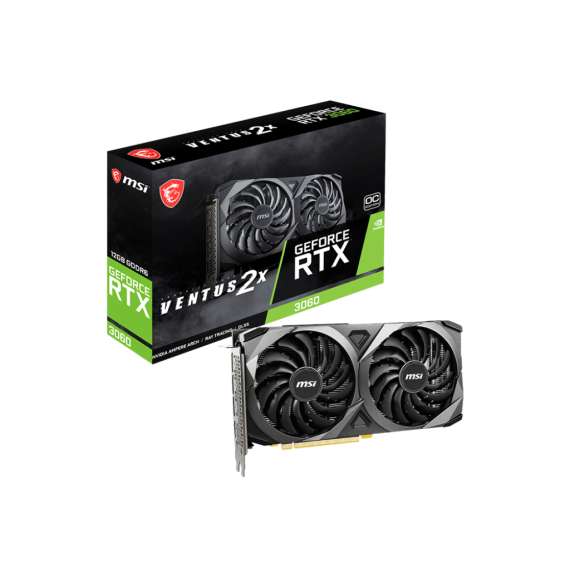

MSI Nvidia Geforce RTX 3060 Ventus 2X 12GB Graphics Card
912V397-039
Core Specifications
GPU: NVIDIA GeForce RTX 3060 (Ampere architecture)
CUDA Cores: 3,584
Boost Clock: 1,807 MHz (factory overclocked)
Memory: 12 GB GDDR6 @ 15 Gbps, 192‑bit bus — ~360 GB/s bandwidth
Power & Interface
TDP / Power Draw: 170 W typical
Power Input: Single 8‑pin PCIe connector
Recommended PSU: ≥ 550 W
Bus Interface: PCI Express 4.0 x16
Display Outputs & Resolution
Outputs: 3 × DisplayPort 1.4a, 1 × HDMI 2.1 (4K@120 Hz support)
Max Displays: 4 simultaneous outputs
Max Resolution: 7,680 × 4,320
API & Feature Support
DirectX Version: DirectX 12 Ultimate
OpenGL: 4.6
Ray Tracing: 2nd‑gen RT cores
Tensor Cores: 3rd‑gen for DLSS & AI features
VR-Ready, NVIDIA G‑Sync, Adaptive V‑Sync support
Cooling & Design
Cooling: Dual-fan TORX Fan 3.0 with Zero Frozr (fan stops at low temps)
Heatsink: Large fins with thermal pads for VRAM & VRMs
Dimensions: ≈235 × 124 × 42 mm (2-slot design)
Weight: ~675 g (card) / ~1,030 g (packaged)
Software & BIOS
MSI Software: Includes Afterburner OC Scanner, Dragon Center, MSI Center, On‑Screen Display, Predator recording tool
PCB: Custom design with reinforced circuits & power delivery
