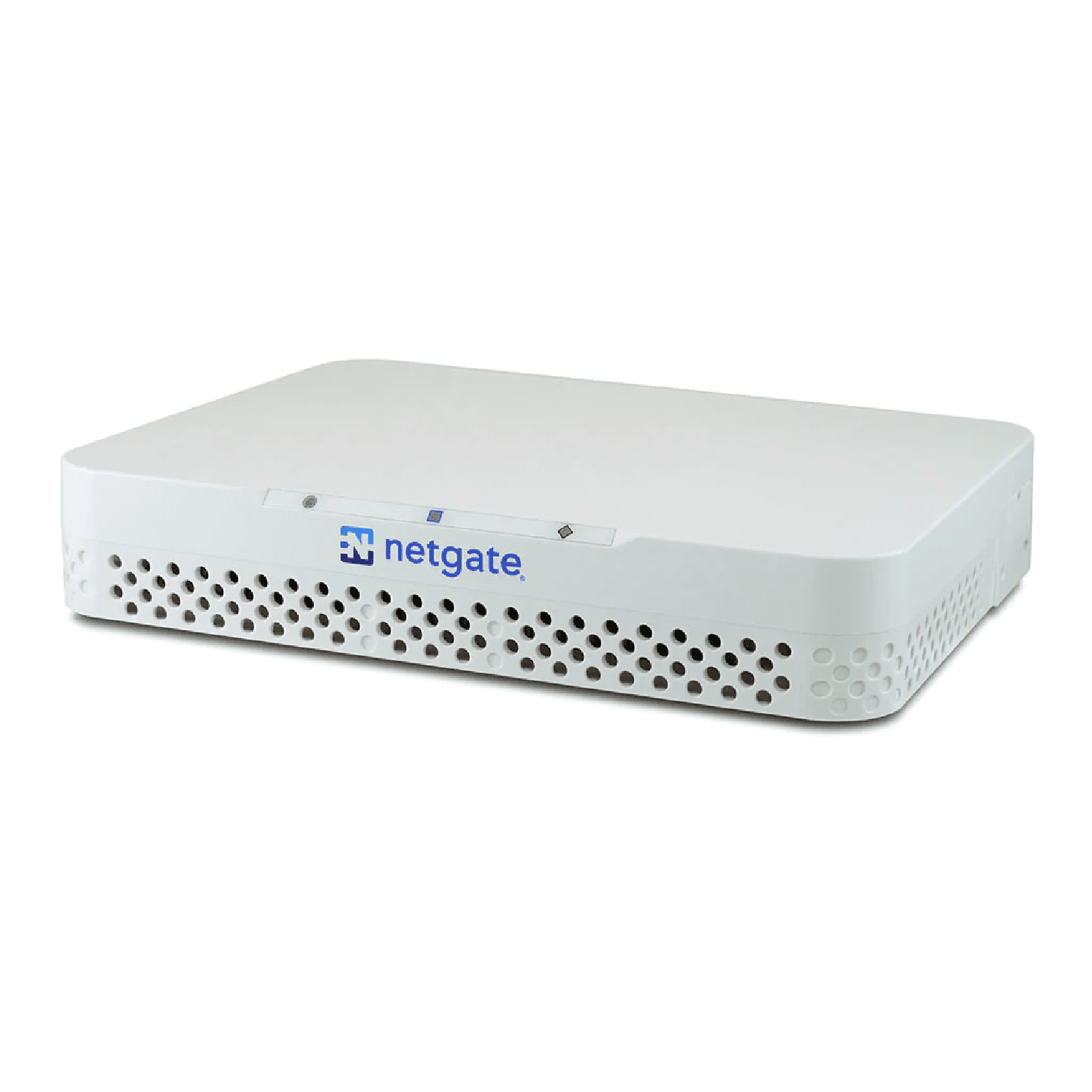

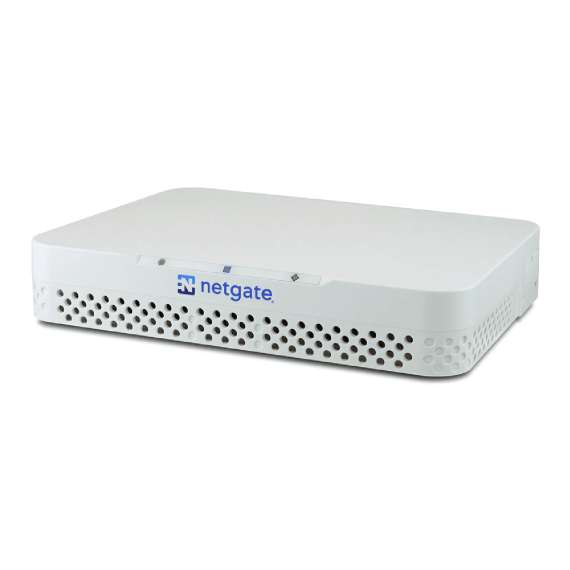

Netgate 6100 Max pfSense+ Security Gateway
Intel Atom C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
Quad Core
(2) 10 Gbps SFP+ cage (WAN),
(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)
(4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)
16 GB eMMC (onboard - soldered) upgradable to 128 GB NVMe M.2 SSD with 6100 Max
8GB DDR4 w/o ECC, single channel
2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front
3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
The Netgate®\ 6100 with pfSense Plus software is one of the most versatile security gateways in its class. It combines the power of an Intel C3558 Quad Core CPU with integrated (QAT) QuickAssist Technology & AES-NI and 8 GB of memory for a snappy user experience, delivering over 18 Gbps of L3 routing across 8 independent 1 GbE, 2.5 GbE, and 10 GbE Flexible WAN/LAN ports. The 6100 is capable of performing high-throughput firewall, routing, and VPN applications. Despite its powerful performance the 6100 operates in complete silence with a passive cooling system and is ideal for pro-home, small/medium businesses, or edge deployments.
Quad Core
(2) 10 Gbps SFP+ cage (WAN),
(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)
(4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)
16 GB eMMC (onboard - soldered) upgradable to 128 GB NVMe M.2 SSD with 6100 Max
8GB DDR4 w/o ECC, single channel
2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front
3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
The Netgate®\ 6100 with pfSense Plus software is one of the most versatile security gateways in its class. It combines the power of an Intel C3558 Quad Core CPU with integrated (QAT) QuickAssist Technology & AES-NI and 8 GB of memory for a snappy user experience, delivering over 18 Gbps of L3 routing across 8 independent 1 GbE, 2.5 GbE, and 10 GbE Flexible WAN/LAN ports. The 6100 is capable of performing high-throughput firewall, routing, and VPN applications. Despite its powerful performance the 6100 operates in complete silence with a passive cooling system and is ideal for pro-home, small/medium businesses, or edge deployments.
