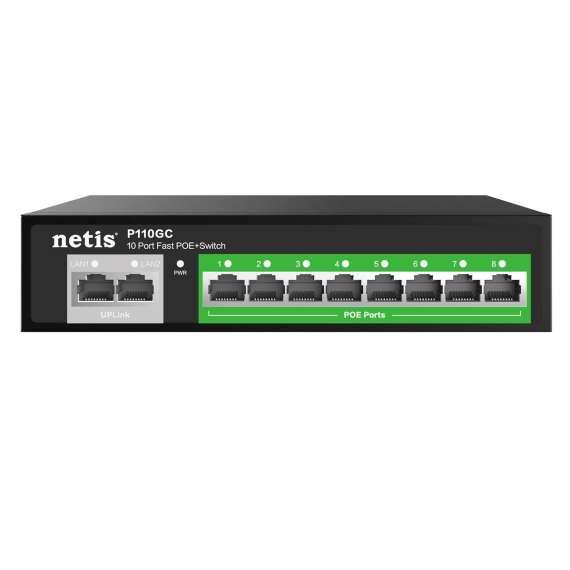

Netis P110GC 8 Port Gigabit PoE Switch
Netis P110GC 8GE+2GE Gigabit POE Switch
The 8GE+2GE Gigabit POE Switch Netis P110GC provides a great selection for expanding your home, store or office network. It fully complies with IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standards. It provides 8*10/100/1000Mbps POE RJ45 Ports and 2 Gigabit uplink RJ45 ports. All POE RJ45 ports support Power over Ethernet function and it can automatically detect and supply power with the IEEE 802.3at/af compliant Powered Devices (PDs), like PoE APs, IP Phones,IP cameras, etc. It’s a perfect way to extend your network structure.
Features of Netis P110GC
○ 10* 10/100/1000Mbps Auto-Negotiation RJ45 ports,8 POE function
○ Supports POE power up to 30W for each PoE port ,120W for all PoE ports
○ Supports POE IEEE 802. 3at/af compliant Powered Device (PD)
○ IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
○ 20Gbps switching fabric capacity/backplane bandwidth
○ Supports 2K MAC address table, MAC address auto-learning & auto-aging
○ Green Ethernet technology for effective power saving
○ LED indicators for simple diagnostics and management
○ Plug and play ,no configuration required
○ Steel case, with external power supply
Specifications of Netis P110GC
| Hardware | |
| Interface | 8×10/100/1000Mbps POE ports（Data/Power）
2×10/100/1000Mbpsuplink RJ45 ports (Data) |
|
Basic function
|
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802. 3af/at compliant Powered Device (PD)
Store-and-forward switching scheme |
|
Standards
|
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Mode
|
Normal switch mode
|
|
Data Transfer Rate
|
Ethernet:10Mbps(Half-duplex);20Mbps(Full-duplex)
Fast Ethernet:100Mbps(Half-duplex);200Mbps(Full-duplex) Gigabit Ethernet :2000Mbps(Full-duplex) |
|
Store & Forwarding
|
Yes |
|
Switching Capacity
|
20G |
|
MAC Address Table Size
|
4K |
|
Jumbo Frame
|
2048 byte
|
|
Environment
|
Operation Temperature：0℃～40℃
Storage Temperature：-40℃～70℃
Operation Humidity：10%～90% RH Non-condensing
Storage Humidity：5%～90% RH Non-condensing
|
|
Power Input POE Standards
|
Single port maximum power 30W,
Whole switch maximum power 100W Support over-current,over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up
Power Supply Pin:12+/36-
AC 110~240V 50/60HZ
|
|
Cabling type
|
1000Base-TX: Cat 5e or better UTP/STP(≤100m)
100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m)
|
|
Dimensions (L x W x H )
|
190mm*140mm*43mm
|
