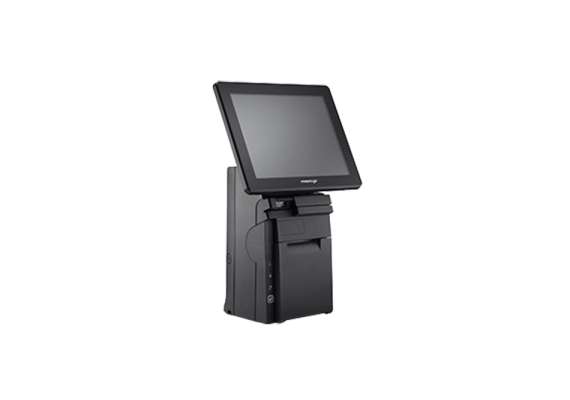

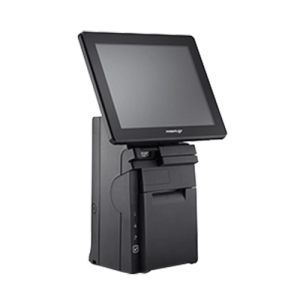

Posiflex 12.1 Inch mini AIO fanfree touch terminal Monitor
HS-3512W
Specification
Processor: Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory: DDR3L SO-DIMM x 1, max. 8GB
Storage Device: SATA Storage x 2 (one for HDD/SSD; the other for 1” SSD only)
Power Supply: 24V/60W
Built-in Printer: 3” detachable printer w/auto cutter, 250 mm/sec (max.)
OS support: Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT/Linux per request
LCD: 12″ TFT LCD
Resolution: 1024 x 768
Touch: True-flat PCAP touch with multi-touch support (IP65 on front panel)
Serial Port: 3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port: Yes
Standard USB Port: USB 2.0 x 4
LAN Port: 10/100/1000 Mb x 1
Display Port: VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable (printer driven)
PS/2 Port: Yes
Audio: Line-out x 1
Expansion Slot: Mini-PCIe slot x 1
Dimension (W x D x H in mm): 297 x 198 x 473
Weight (N. W. in kg): 5.3
Operating Condition: 0°C – 40°C, 20%RH – 90%RH (Equipped with HDD); 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition: -20°C – 70°C, 10%RH – 90%RH
Built-in Options
MSR: 3 tracks ISO or JISII (HID/VCOM selection)
FPU: Optical type
WiFi: Mini-PCIe WiFi/BT module
RFID Reader: Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner 2D barcode scanner
iButton Yes (cannot coexist with FPU)
Processor: Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory: DDR3L SO-DIMM x 1, max. 8GB
Storage Device: SATA Storage x 2 (one for HDD/SSD; the other for 1” SSD only)
Power Supply: 24V/60W
Built-in Printer: 3” detachable printer w/auto cutter, 250 mm/sec (max.)
OS support: Win 7/POSReady 7/WE 8.1 Industry/Win 10 IoT/Linux per request
LCD: 12″ TFT LCD
Resolution: 1024 x 768
Touch: True-flat PCAP touch with multi-touch support (IP65 on front panel)
Serial Port: 3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port: Yes
Standard USB Port: USB 2.0 x 4
LAN Port: 10/100/1000 Mb x 1
Display Port: VGA x 1, 12V support for Posiflex monitors
CR Port 1, control 2 CR via optional Y-cable (printer driven)
PS/2 Port: Yes
Audio: Line-out x 1
Expansion Slot: Mini-PCIe slot x 1
Dimension (W x D x H in mm): 297 x 198 x 473
Weight (N. W. in kg): 5.3
Operating Condition: 0°C – 40°C, 20%RH – 90%RH (Equipped with HDD); 0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition: -20°C – 70°C, 10%RH – 90%RH
Built-in Options
MSR: 3 tracks ISO or JISII (HID/VCOM selection)
FPU: Optical type
WiFi: Mini-PCIe WiFi/BT module
RFID Reader: Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner 2D barcode scanner
iButton Yes (cannot coexist with FPU)
