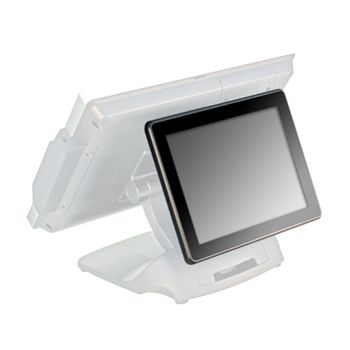

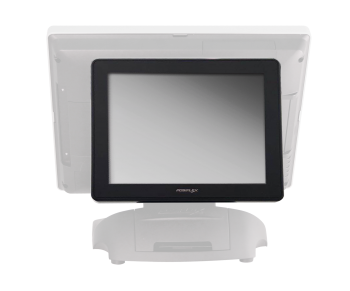

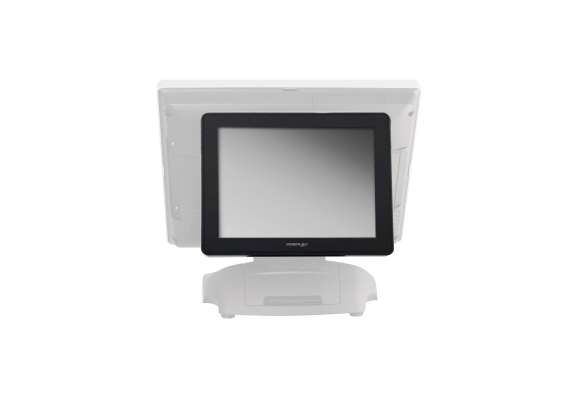

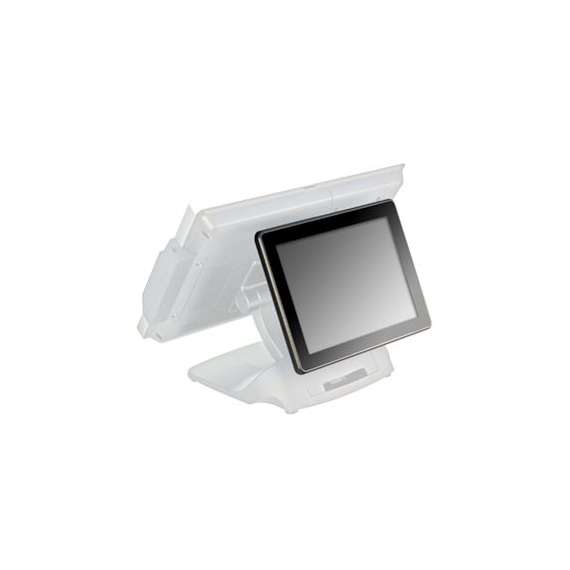

Posiflex 9.7 Inch Monitor
LM-3010E-B
Display
LCD : 9.7" TFT LCD
Resolution : Up to 1024 x 768
Active Area : 196.61 (H) x 147.46 (V)
Pixel Pitch : 0.192 (H) x 0.192 (V)
Pixel Arrangement : RGB Vertical Stripe
Viewing Angle : 60/70/70/70 degree (U/D/L/R)
Contrast Ratio: 500 : 1
Response Time : 20 ms (Raising + Falling)
Brightness : 350 cd/m2
Touch
Touch Type : N/A
Interface : N/A
General Specification
Display Interface : VGA
Power Supply : 12V from Posiflex terminal VGA port
Dimension (W x D x H in mm) : -
Weight (N.W. in kg) : -
Operating Condition : -
Support
System Supported : All XT Series (excl. XT-2614Q) & 12.1" KS Series
VESA Mounting Support : -
Options
Options : -
LCD : 9.7" TFT LCD
Resolution : Up to 1024 x 768
Active Area : 196.61 (H) x 147.46 (V)
Pixel Pitch : 0.192 (H) x 0.192 (V)
Pixel Arrangement : RGB Vertical Stripe
Viewing Angle : 60/70/70/70 degree (U/D/L/R)
Contrast Ratio: 500 : 1
Response Time : 20 ms (Raising + Falling)
Brightness : 350 cd/m2
Touch
Touch Type : N/A
Interface : N/A
General Specification
Display Interface : VGA
Power Supply : 12V from Posiflex terminal VGA port
Dimension (W x D x H in mm) : -
Weight (N.W. in kg) : -
Operating Condition : -
Support
System Supported : All XT Series (excl. XT-2614Q) & 12.1" KS Series
VESA Mounting Support : -
Options
Options : -
