Solar 3300 Inverter PowerHub

PRODUCT SPECIFICATIONS
Inverter
Max AC Output (One Battery) 2000W
Max AC Output (Two Batteries) 3300W
Rated Output Voltage (Vac) 230Vac, ±5%
Output Voltage Waveform Pure sine wave
Maximum Efficiency ≥92%
Rated Input Voltage 220/230Vac
Frequency 50Hz/60Hz (auto-detection)
Maximum Charge Current 0-80A, adjustable
Rated Battery Input Voltage 24V (minimum starting voltage 22V)
Maximum PV Input Power 4000W
Battery Control Unit
Battery 25.6V 2.56kWh Lithium-Iron Phosphate (LFP) battery
Output Voltage Range 21.6V - 27.2V
LCD Display System Displays connection, usage, and battery
consumption
PAYG Enforcement GSM-based activation using Sun King Link API
compatible with major PAYG software platforms
(licensed separately)
Solar Power
Total Solar Power From 1800W to 3600W (4-8 450W panels)
Solar Panel Specification Maximum Power: 450W
Technology: Monocrystalline
Open-Circuit Voltage (Voc): 49.35V
Short-Circuit Current (Isc): 11.61A
Maximum Power Voltage (Vmp): 41.56V
Maximum Power Current (Imp): 10.83A

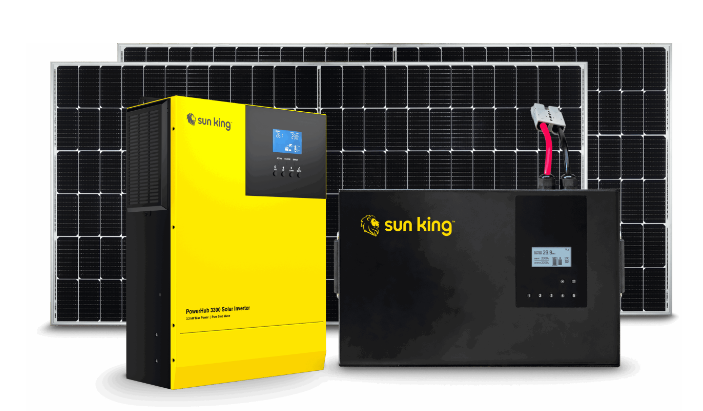

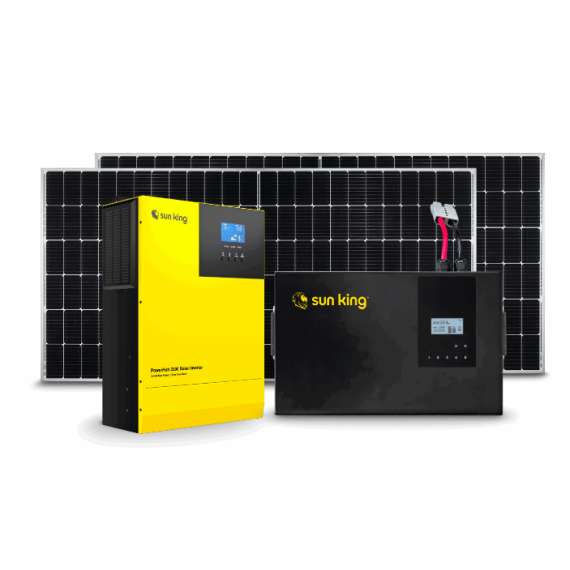

The PowerHub 3300 is the latest addition to Sun King’s solar inverter
product range, combining powerful capability with cutting-edge
analytics. Available on pay-as-you-go finance options, the PowerHub
3300 presents a sustainable, cost-effective alternative to diesel
generators for weak-grid and off-grid homes and businesses.
Solar Inverter
PowerHub 3300
3300W
inverter
Pure Sine Wave
Lithium Iron
phosphate (LFP)
battery
10-year
projected
battery lifespan
4000W
maximum
solar power
3-year
warranty

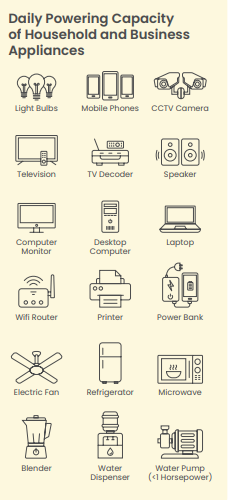

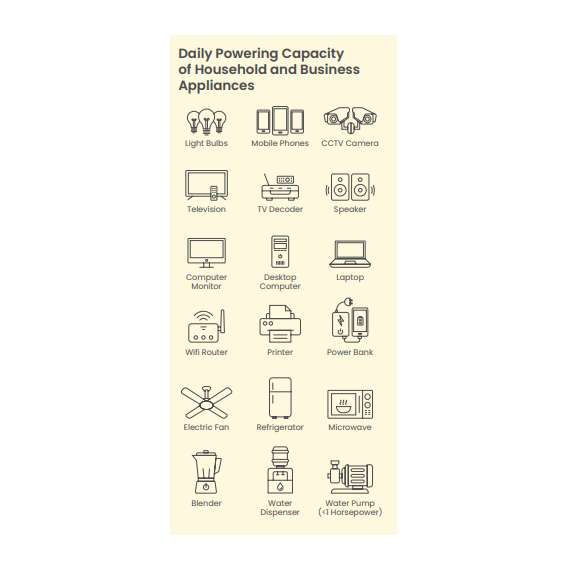

Capable of powering an extensive range of appliances, from domestic equipment
such as lights, refrigerators, and televisions, to small businesses’ computers, food
processing equipment, and light machinery, the PowerHub 3300 can deliver up to 3.3kW
of electricity, equivalent to the electrical grid.
A hybrid solar inverter, the PowerHub 3300 connects to two sources of energy: solar
panels and, if available, the electrical grid. This dual functionality allows for continuous
operation regardless of weather, time of day, or grid stability. The PowerHub’s solar
panels generate direct current (DC), which can be stored in the Lithium Iron Phosphate
(LFP) battery or directly used by the PowerHub 3300 to convert DC to alternating current
(AC) for appliance use.
Web-Hosted Energy Data Analysis and Tracking
A new feature for a Sun King product, the PowerHub has GSM-enabled monitoring and
analytics. A cloud-based online tool allows users to monitor the performance of their
PowerHub in near-to-real time. The system allows users to see data on grid power, solar
power, and battery state from anywhere in the world. This technology enables Sun King
to provide optimised customer support and empowers PowerHub owners to monitor
and optimise their set-up to protect against power outages and reduce energy costs.
Next-Generation Pay-As-You-Go, EasyBuy Technology
Sun King’s pay-as-you-go (PAYG) system enables customers to take home the
PowerHub 3300 after making a modest deposit. Following this initial deposit, customers
then make small, regular top-up payments via mobile money or cash.
The PowerHub 3300 has onboard device management technology built in that enables
remote activation and deactivation based on the customer’s payment status. The
PowerHub 3300 integrates the latest PAYG technology, which enables instant payment
tracking through GSM coverage.
