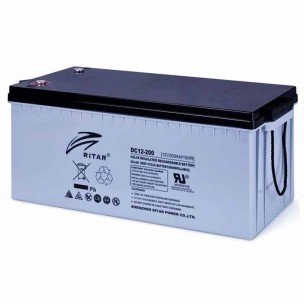

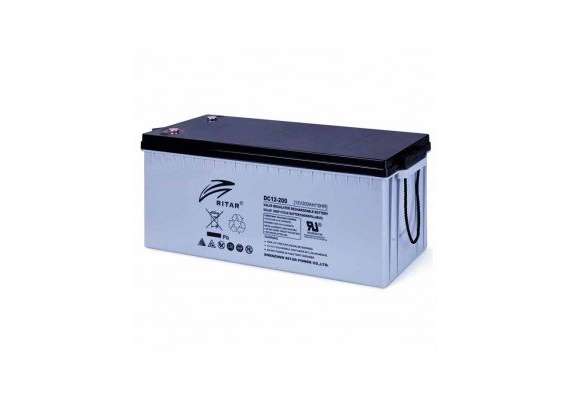

Ritar DG12-200 200AH 12V Deep Cycle MF Battery
DG12-200
Ritah 200AH 12V is a maintenance free battery
Deep cycle Gel characteristics.
Rechargerable battery that can be charged both by solar and grid power system.
Suitable power backup option and also off-grid use.
- Cells Per Unit 6
- Voltage Per Unit 12
- Capacity 200Ah@20hr-rate to 1.75V per cell @25℃
- Weight Approx. 58.0 Kg (Tolerance±3.0%)
- Max. Discharge Current 2000A (5 sec)
- Internal Resistance Approx. 5.2 mΩ
- Terminal F10(M8)/F16(M8)
- Max. Charging Current 40.0 A
- Container Material A.B.S. UL94-HB, UL94-V0 Optional.
- Operating Temperature Range
- Discharge: -40℃~60℃
- Charge: -20℃~50℃
- Storage: -40℃~60℃
- Normal Operating Temperature Range 25℃±5℃
- Float Charging Voltage 13.6 V~13.8 V @ 25℃ 14.2 V~14.4 V @ 25℃ Cycle Use Voltage.
- RITAR Valve Regulated Lead Acid (VRLA) batteries
- Can be stored for up to 6 months at 25℃, and then recharging
- Monthly Self-discharge ratio is less than 2% at 20℃.
- Please charge batteries before using.
- 1 year warranty.
Length: 522±2mm (20.6 inches)
Width: 240±2mm (9.45 inches)
Height: 219±2mm (8.62 inches)
Total Height: 224±2mm (8.82 inches
