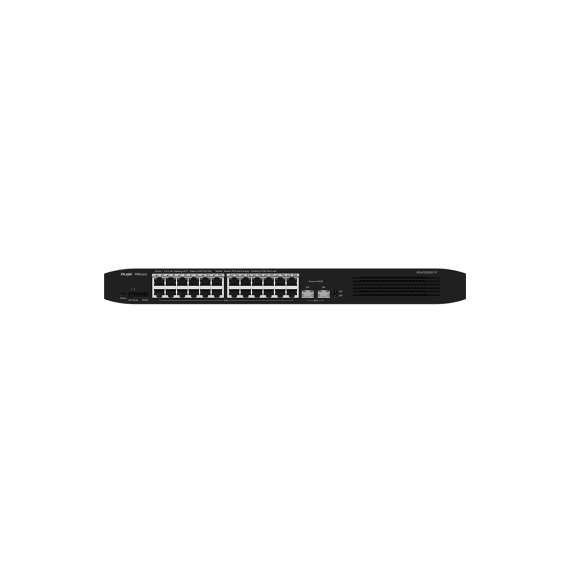

Ruijie RG-ES226GC-P 26-Port Gigabit Smart Cloud Mananged PoE Switch

CODE : RG-ES226GC-P

Write a review

$309.52

BrandRuijie ConditionNew Device MountingRack Mount Device SpeedGigabit (10/100/1000Mbps) Number of Ports24 ports Power over Ethernet (PoE)Full PoE SFP Ports2 Switch TypeManaged Warranty IssuerManufacturer

Description
Features
Reviews

26-Port gigabit cloud managed switch with 24 PoE+ ports
Cost-Effective Smart Cloud Managed Switches
IP Camera Recognition, Unique Value for CCTV Network
Automatic Loop Prevention Ensures Service Continuity
Lifetime management on Ruijie Cloud at anytime anywhere

24 x 10/100/1000Base-T PoE+ ports, 2 SFP uplink

Switching capacity	52Gbps
Switching Cache	4.1Mbit
Package forwarding rate	38.7Mpps
Ports	24 10/100/1000 Base-T ports (PoE/PoE+), 2 10/100/1000 Base-X SFP uplink port
PoE Standard	IEEE 802.3at / 802.af
PoE Power Budget	370W
Speed / Duplex mode	Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC address	8K
Maximum Number of VLANs	16
Allowed VLAN ID	1 ~ 4094
Port-based VLAN	Support
Flow Control	Support
Loop Protection	Support
Unknown Unicast Suppression	Support
Multicast / Broadcast Storm Suppression	Support
Mirroring	Many-to-One Mirroring
Port Isolation	Support
Cable Testing	Support
DNS	DNS Client
Telnet	Support
MACC	Support
Port Surge	Common mode: 4KV
Electrostatic Discharge	Air discharge: 6KV Contact discharge: 4KV
Power Consumption	≤ 443W
Power supply	Built-in power supply
Dimensions (W x D x H)	440 x 289 x 43.6mm
Weight	4.2 kg (with package)
MTBF	>200K
Operating temperature	0 to 40°C
Storage temperature	-40~70ºC
Operating humidity	10% to 90% RH
Storage humidity	5% to 95% RH
Operating Altitude	-500 ~ 5000 meters
Fan	Fanless
Management	Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance	GB4943-2011, EN 62638-1
EMC	GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
