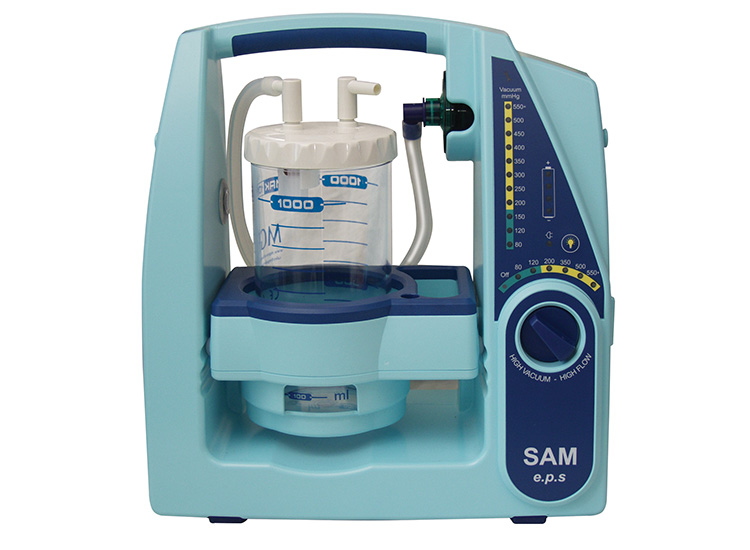

SAM Battery Powered Portable Suction Machine

A high tech, high quality emergency portable suction unit to meet the demands of medical personnel in hospitals,wards, ambulances and out in the field

The SAM e.p.s (Emergency Portable Suction) aspirator with optional BioCloak® technology offers a new benchmark in battery operated suction equipment. These lightweight units are ideal for use by emergency services and incorporate many new features including a high performance low energy pump, fast suction build up, onboard lighting, a unique rotating bottle system allowing the unit to be laid flat in difficult terrain and the option to include a new anti-bacterial coating to help in infection control.

Fitted with an internal charger, they provide reliable performance both in and outside the hospital environment giving up to 120 minutes of full power continuous use between charges and up to 11 hours at lower suction levels.

The SAM e.p.s has been specifically designed following consultations with doctors, paramedics, resusitation officers and other medical staff and is suitable for use in ambulances, general hospital wards, critical care units, clinics and out in the community

A simple single knob with vacuum settings for typical adult and paediatric medical procedures controls the unit. And a bright clear ‘easy-wipe’ digital display indicates the vacuum level and battery status making operating the e.p.s straightforward even when wearing gloves or other protective equipment.

Vacuum 0 to 0.8 bar / 0 to 600 mmHg
Flow rate Up to 32 l/min
Voltage 12-28V DC
100 - 240V AC
Battery RunTime: 120 Minutes on Full Power
Over 11Hours on low settings
Recharge Time 2 1/2 hours from flat
Weight 4.7kg (including SAM 1 cannister)
Dimensions 330 x 169 x 349 (mm) (L x D x H)
Noise Level 46dB at max, <30dB at min

Protection

Disp. Hydrophobic Filter (MSP1003)
Optional BioCloak® Anti-bacterial coating
Features:

Digital Display, Rotating Bottle,
On-board Lighting, Service Indicator,
Usage Datalogging, Splashproof (IP34D)
Support for multiple disposable liner
systems or a reuseable collection bottle.

Accessories Included:

1000cc bottle, Power Cables,
Internal Charger, 1m Patient Tubing.

Complies with

Medical Directive 93/42/EEC
BS EN ISO 10079-1
BS EN 60601-1
BS EN 60601-1-2
