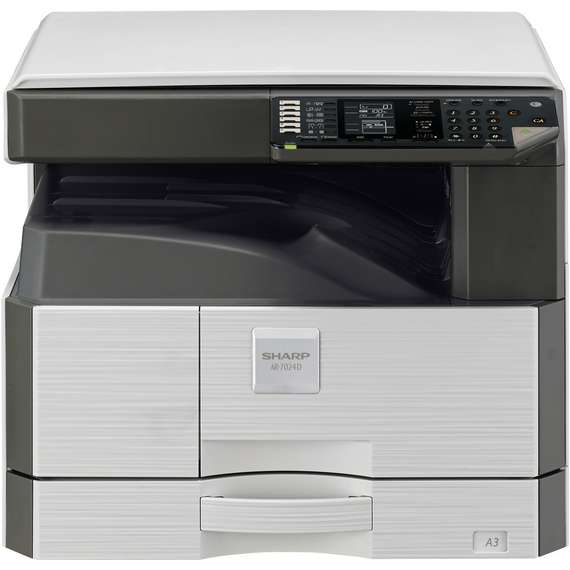

SHARP AR-7024D Monochrome MFP Printer

Overview

The new AR-7024D is a fast A3 black & white MFP with a flexible design. This machine brings advanced functionality, impressive quality and a whole host of productivity features within reach of every small workgroup. It is ideal for all your daily black & white printing, colour scanning and copying needs.

You can print at speeds of 24 pages per minute which is more than enough to support the needs of a busy small office and fast enough for sharing on a small network if you decide to upgrade it later on.
Copying is just as quick and easy as printing. A first copy out time of 6.4 seconds eliminates unnecessary delays from multiple short run jobs and the optimised Scan Once/Print Many technology simplifies longer runs.


Print, Copy, Scan
Pages per minute: 24 B/W
Paper capacity: Std 350 Max 1850 sheets
Duplex printing and copying
Network printer and colour scanner
Standard Network TWAIN function
Sharpdesk Mobile

Specification

Engine speed: A4 B/W (ppm) 24
Engine speed: A3 B/W (ppm) 12
Paper size: Min.-Max. A6R - A3
Paper weight (g/m²) 55 - 200
Paper capacity: Std. (sheets) 350
Paper capacity: Max. (sheets) 1850
Warm Up Time (sec.) 25
Memory general: Min./Max. (MB) 64 - 448
Duplex STD
Power requirements - rated local AC voltage (Hz) 220 - 240V, 50/60Hz
Power consumption (kW) 1,2
Dimensions (mm) 599 x 612 x 511
Weight (kg) 29
Copier
Original paper size: Max. A3
First copy out time: B/W (sec.) 6,4
E-sort Std. yes
E-sort Opt. no
Continuous copy (Max. copies) 999
Scan resolution: B/W (dpi) 400 x 600
Print resolution (dpi) 600 x 600
Gradation: B/W (equivalent levels) 256
Zoom range (%) 25 - 400
Preset copy ratios 10
Document Feeder
Original capacity (sheets) OPT 100
Scanner
Network Scanner (Standard / Option) OPT
Scan method Push scan and Pull scan yes
Push scan resolution (dpi) 75, 100, 150, 200, 300, 400, 600
Pull scan resolution (dpi) 75, 100, 150, 200, 300, 400, 600
File formats TIFF, PDF,JPG, BMP
Scanner utilities Button Manager
Scan destination: Desktop yes
Scan destination: FTP, Email yes
Scan destination: Network folder no
Scan destination: USB memory yes
Document Filing
Confidential storage no
Printer
Resolution (dpi) 600 x 600
Network Printer (Standard / Option) STD
Interface: Std./Opt. Std: USB 2.0 OPT: 10Base-T/100Base-TX
Supported OS: Std. Windows 8.1, 10.
Supported OS: Opt. Windows Server 2012, 2012R2, 2016, 2019. Mac OS X 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15
Network protocols TCP/IP
Printing protocols LPR, Raw TCP, IPP (OPT)
PDL: Std./Opt. Std: SPLC. OPT: PCL6 emulation, PostScript® 3™ emulation
Available fonts 80 fonts for PCL, 136 fonts for PostScript® 3™ emulation
Finishing
Output capacity: Max. (sheets) 250 sheets

Toner Yield
Black (pages at 6% coverage) 20000
