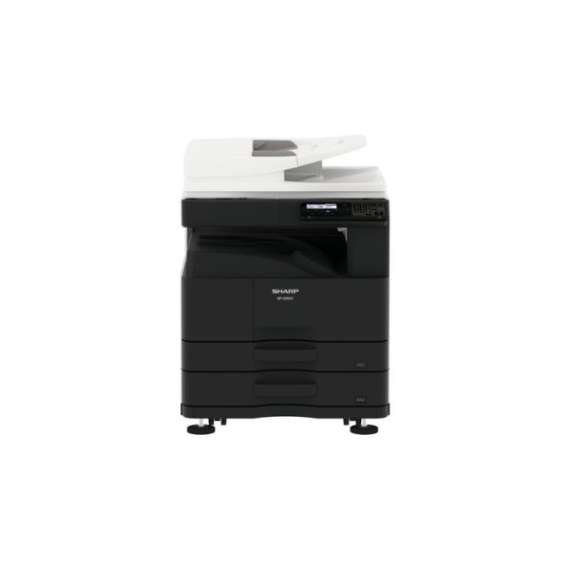

Sharp BP-20M24 A3 Office Copier Printer

Overview

The BP-20M24 is a A3 black & white (monochrome) multifunctional device that offers adaptable features for connected teams. This compact all-in-one printer has enhanced security features and superior functionality that enables flexible working and lets you complete everyday tasks quickly and easily; all with a lot more style. It’s a unique cubic frame and the smallest A3 footprint in its class means it can fit almost anywhere and its two-tone color scheme will enhance the look of any workspace.

The BP-20M24 has an output speed of 24 ppm in colour and black & white, a standard paper capacity of 350 sheets which can be expanded up to 1,850 sheets and support for a variety of media.

A range of robust security features keep your data and network safe including intrusion detection, access control, and data encryption as well as a self-healing firmware system, SSL certificate validation and a program execution white list.
A3/A4 Print, Copy, Scan
Pages per minute: 24 B/W (Monochrome)
Paper capacity: Std 350 Max 1,850 sheets
Easy-to-use 5-line LCD control panel with status LED
Robust security features
Optional wireless connectivity

Specification

Type Desktop
Engine speed A4 (8 1/2" x 11") Max. 24/22 ppm
A3 (11" x 17") Max. 12 (11) ppm
Control panel display 5-line LCD
Paper size Max. A3 (11" x 17"), min. A6*2 (5 1/2" x 8 1/2")
Paper capacity
(80 g/m2)
Standard 350 sheets(250-sheet tray and 100-sheet multi bypass tray)
Maximum 1,850 sheets(350 sheets & optional 3 x 500-sheet tray)
Paper weight Tray 1 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond)
Trays 2–4 60 g/m2 to 200 g/m2 (16 lbs bond to 110 lbs index)
Multi bypass tray 55 g/m2 to 200 g/m2 (13 lbs bond to 110 lbs index)
Warm-up time 25 sec.
Memory 1 GB (copy/print shared)
Power requirements Rated local AC voltage ±10%, 50/60 Hz
Power consumption Max. 1.2 kW
Dimensions (W x D x H) 599 x 608 x 643 mm
(23 19/32" x 23 15/16" x 25 21/64")
Weight (approx.) 34 kg (74.6 lbs)

Copier

Original paper size Max. A3 (11" x 17")
First copy time 6.4 sec.
Continuous copy Max. 999 copies
Resolution Scan 400 x 600 dpi
Print 600 x 600 dpi
Gradation Equivalent to 256 levels
Zoom range 25% to 400% (25% to 200% using RSPF) in 1% increments
Preset copy ratios Metric 10 ratios (5R/5E)
Inch 8 ratios (4R/4E)

Scanner

Scan method Push scan (via control panel)
Pull scan (TWAIN-compliant application)
Scan speed*5 Colour & B/W Max. 37 originals/min.
Resolution
Push scan 100, 150, 200, 300, 400, 600 dpi*6
Pull scan 75, 100, 150, 200, 300, 400, 600 dpi
50 dpi to 9,600 dpi via user setting*7
File formats TIFF, PDF, JPEG*8
Scan destinations Scan to email/desktop*9/FTP server/network folder (SMB)/USB drive

Printer

Resolution 600 x 600 dpi
Interface USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n)*10
Supported OS Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 8.1, Windows® 10,
Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15
Network protocols TCP/IP
Printing protocols LPR, Raw TCP (port 9100), FTP for downloading print files, IPP, SMB, WSD
PDL Standard PCL 6 emulation
Option PostScript® 3™ emulation
Available fonts 80 fonts for PCL, 136 fonts for PostScript 3 emulation
