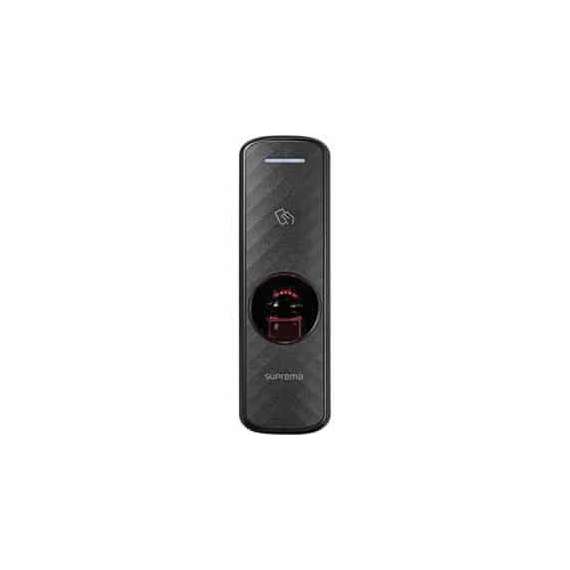

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD
Suprema BioEntry R2 is a Compact RFID card & Fingerprint Reader exclusively designed for centralized access control systems. Packed in a slim, mullion-type design, BioEntry R2 provides high-definition fingerprint image capture,
Credential
Biometric:Fingerprint
RF Option:BER2-OD: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC
RF read range*:MIFARE/DESFire/EM/iCLASS: 50 mm, Felica: 30 mm
* RF read range will vary depending on the installation environment.
Hardware
LED:Multi-color
Sound:Multi-tone Buzzer
Operating temperature:-20°C ~ 50°C
Operating humidity:0% ~ 80%, non-condensing
Dimension (W x H x D):50 mm x 164 mm x 37.5 mm
Weight:Device: 158 g
Bracket: 39 g (Including washer and bolt)
Certificates:CE, FCC, KC, RoHS, REACH, WEEE
Interface
RS-485:1ch Slave
Tamper:Supported
Specification
| Credential |
Biometric |
Fingerprint |
| RF Option |
BER2-OD: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC |
| RF read range* |
MIFARE/DESFire/EM/iCLASS: 50 mm, Felica: 30 mm
* RF read range will vary depending on the installation environment. |
| Hardware |
LED |
Multi-color |
| Sound |
Multi-tone Buzzer |
| Operating temperature |
-20°C ~ 50°C |
| Operating humidity |
0% ~ 80%, non-condensing |
| Dimension (W x H x D) |
50 mm x 164 mm x 37.5 mm |
| Weight |
Device: 158 g |
| Bracket: 39 g (Including washer and bolt) |
| Certificates |
CE, FCC, KC, RoHS, REACH, WEEE |
| Interface |
RS-485 |
1ch Slave |
| Tamper |
Supported |
