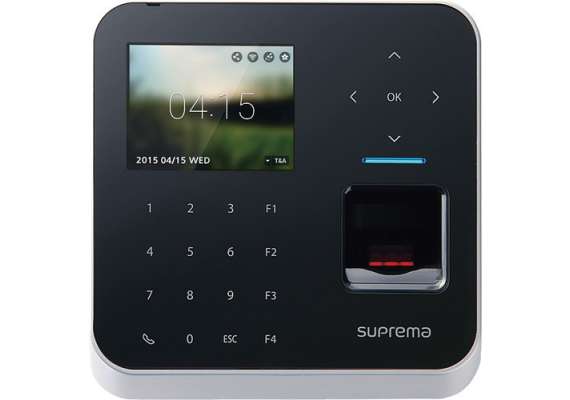

Suprema BS2-OMPW BioStation 2 MIFARE Card & Fingerprint Reader

Suprema BioStation 2 Overview

The BS2-OMPW BioStation 2 MIFARE Card & Fingerprint Reader from Suprema combines MIFARE card and fingerprint reading to provide dual-layer security, authentication, and access control. This reader is capable of instantly matching and authenticating up to 20,000 fingerprints per second. The optical sensor can recognize fingerprints from up to 500,000 users. The built-in 2.8" LCD screen displays information and settings entered from the numeric keypad and assorted buttons.

This device is equipped with a built-in speaker and microphone. It features RS-485 and RS-232 communication protocols, one relay, a Wiegand input & output, two TTL inputs, and two TTL outputs. The reader's tamper-resistant housing is IP65 rated for outdoor use.

1 GHz CPU

Optical sensor captures and recognizes fingerprints from fingers in non-ideal conditions, such as wet and dry fingers

Instantly matches and authenticates up to 20,000 fingerprints per second

Rapid data transfer sends user and log data at a rate of 5000 users per minute

Holds up to 3,000,000 logs for backup in the event of a connection loss to the server

Up to 1,000,000 templates

Built-in 802.11b/g Wi-Fi

802.3af PoE

100M Ethernet

TCP/IP interface

USB 2.0 interface

USB port to connect to a memory stick

Wiegand input and output

Two TTL inputs and two TTL outputs

Numeric keypad, intercom, escape button, function buttons, arrow keys, and OK button

Multicolor LED lamp

CE, FCC, KC, RoHS, REACH, and WEEE certified
