TOA FB-120B Subwoofer system
FB-120B
The FB-120 is a compact, indoor-use subwoofer system employing a high-power 30 cm (12") woofer. It is designed for use in conjunction with TOA's HX-5 series or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.
Power Handling
Continuous pink noise: 200 W
Continuous program: 600 W
Impedance: 8 Ω
Sensitivity
90 dB (1 W, 1 m) at installation in free sound field
96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 40 - 1.2 kHz (-10 dB)

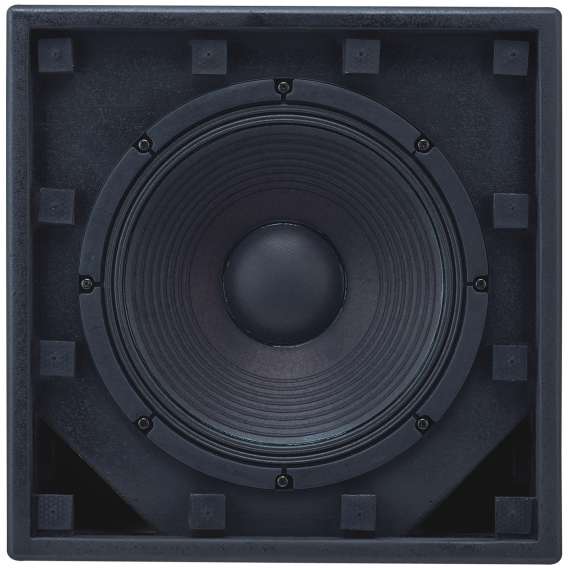

Speaker Component: 30 cm cone-type

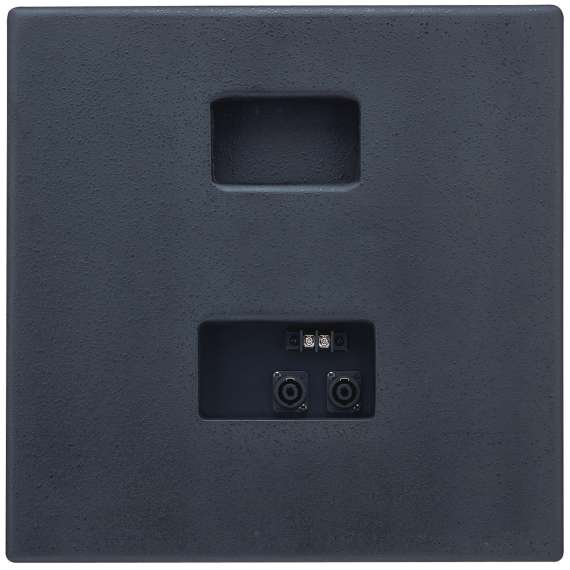

Input Terminal: Speakon NL4MPXX x 2 and M4 screw terminal, distance between barriers: 11 mm
Finish
Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Dimensions: 408 (W) x 408 (H) x 450 (D) mm
Weight: 15 kg
Power Handling
Continuous pink noise: 200 W
Continuous program: 600 W
Impedance: 8 Ω
Sensitivity
90 dB (1 W, 1 m) at installation in free sound field
96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 40 - 1.2 kHz (-10 dB)
Speaker Component: 30 cm cone-type
Input Terminal: Speakon NL4MPXX x 2 and M4 screw terminal, distance between barriers: 11 mm
Finish
Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Dimensions: 408 (W) x 408 (H) x 450 (D) mm
Weight: 15 kg
