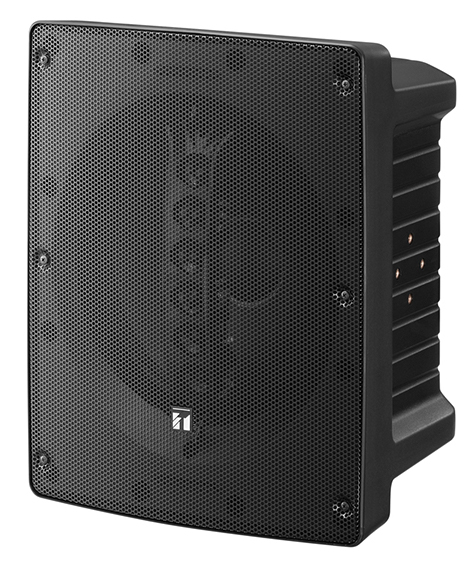

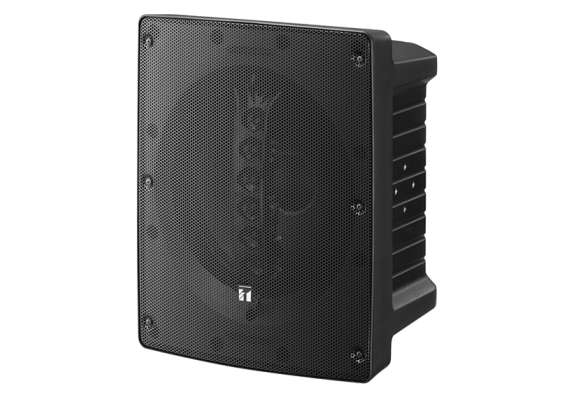

TOA HS-120B Coaxial Array Speaker
HS-120B
The HS-120B is a 2-way speaker system made of resin, and features a large diameter woofer. It can be installed and used in many different applications with combined use of the supplied accessories and/or the optional mounting brackets.
Power Handling Capacity
Continuous pink noise: 100 W
Continuous program: 300 W
Rated Impedance: 8 Ω
Sensitivity: 97 dB (1 W, 1 m)
Frequency Response: 80 - 20,000 Hz
Crossover Frequency: 3 kHz
Directivity Angle: Horizontal: 90゜, Vertical: 40゜
Speaker Component
Low frequency: 30 cm (12) cone-type"
High frequency: Balanced dome tweeter × 6
Input Terminal: NEUTRIK NL4MPXX Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35)"
Operating Temperature: -10℃ to +50℃ (14゜F to 122゜F)
Finish
Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black
Dimensions: 361 (W) × 448 (H) × 320 (D) mm (14.21 × 17.64" × 12.6")"
Weight: 8.5 kg (18.74 lb)
Accessory: Handle …1, Handle fitting bracket …2, Handle mounting screw …2, Rubber foot …2,
Rubber foot mounting screw …2
Power Handling Capacity
Continuous pink noise: 100 W
Continuous program: 300 W
Rated Impedance: 8 Ω
Sensitivity: 97 dB (1 W, 1 m)
Frequency Response: 80 - 20,000 Hz
Crossover Frequency: 3 kHz
Directivity Angle: Horizontal: 90゜, Vertical: 40゜
Speaker Component
Low frequency: 30 cm (12) cone-type"
High frequency: Balanced dome tweeter × 6
Input Terminal: NEUTRIK NL4MPXX Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35)"
Operating Temperature: -10℃ to +50℃ (14゜F to 122゜F)
Finish
Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black
Dimensions: 361 (W) × 448 (H) × 320 (D) mm (14.21 × 17.64" × 12.6")"
Weight: 8.5 kg (18.74 lb)
Accessory: Handle …1, Handle fitting bracket …2, Handle mounting screw …2, Rubber foot …2,
Rubber foot mounting screw …2
