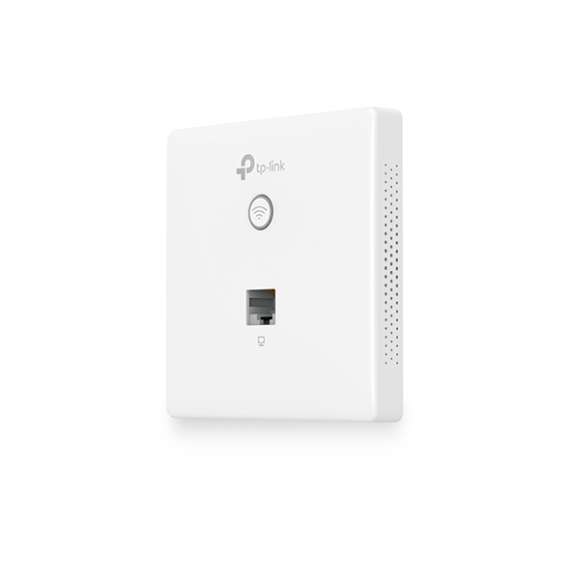

TP-Link EAP115 300Mbps Wall-Plate Access Point
EAP115-Wall

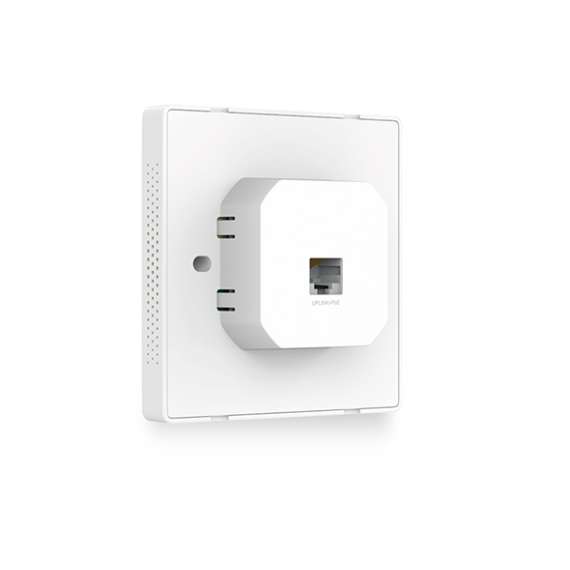

- Easy-mount construction allows installation into any standard EU-type data wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet (802.3af) for convenient and affordable installation
- Enterprise class Wi-Fi security helps to decrease network security threats
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Supports management vlan for an enhanced network management
HARDWARE FEATURES Interface 10/100Mbps Ethernet (RJ-45) Port *2 Physical Security Lock - Button LED/Wi-Fi Button、RESET Power Supply PoE(IEEE 802.3af) Power Consumption 2.8 W Dimensions ( W x D x H ) 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm) Antenna Type Internal 2*1.8dBi Omni Mounting Wall Plate Mounting Hardware Watch Dog Yes WIRELESS FEATURES Wireless Standards IEEE 802.11n/g/b/a Frequency 2.4GHz Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)Transmit Power CE：
<15dBm(2.4GHz)Wireless Functions Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/ClientWireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSKMANAGEMENT Omada App Yes Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software ControllerCloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1,v2c System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes OTHERS Certification CE, RoHS Package Contents 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
Installation Guide
Mounting ScrewSystem Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
