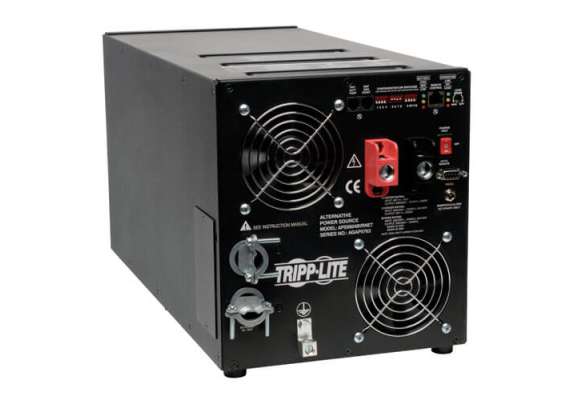

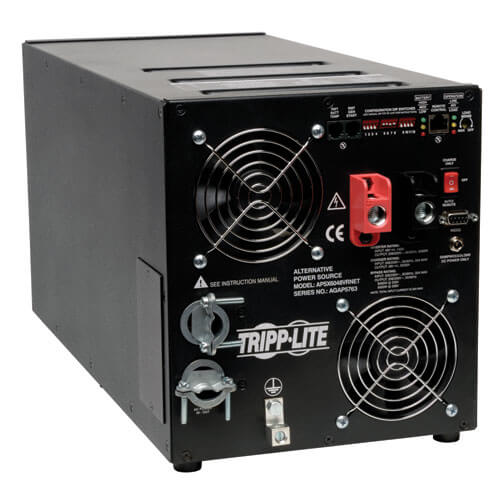

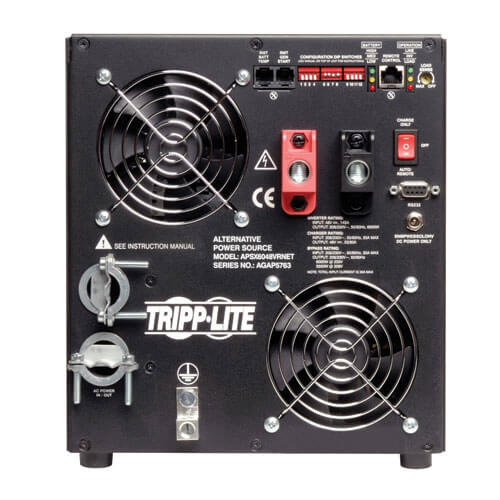

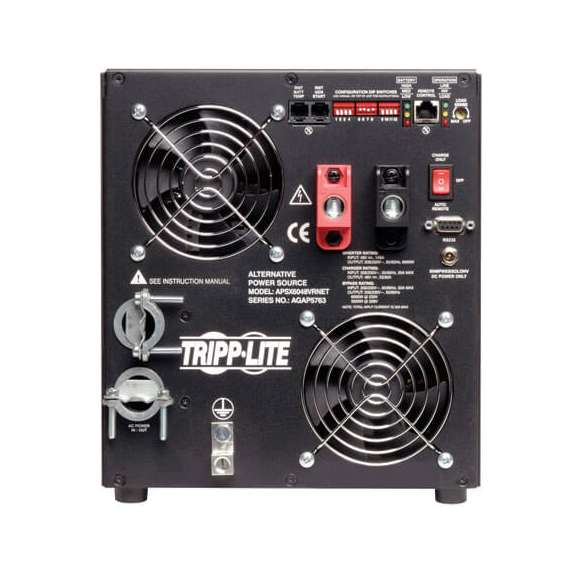

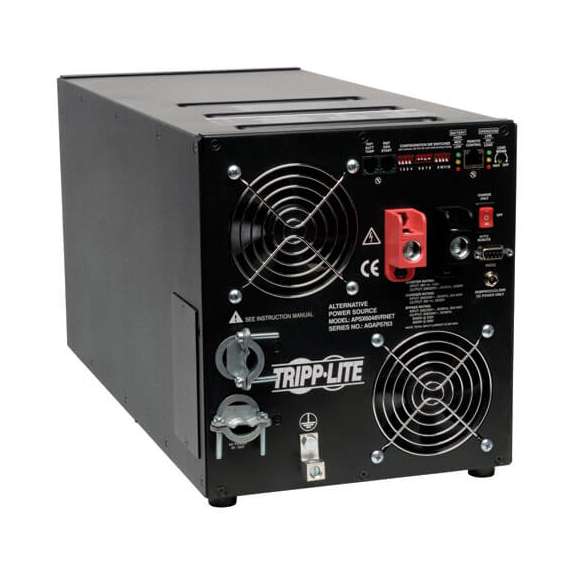

Tripp Lite APSX3024SW 3000W APS X Series 24VDC 230V Inverter Charger

3000W APS X Series 24VDC 230V
Inverter/Charger with Pure Sine-Wave Output,
Hardwired
MODEL NUMBER: APSX3024SW
Highlights
Delivers pure sine-wave 230V
AC power from AC or DC
source
●
3000W continuous output
power; 6000W peak power
●
Auto-transfer switching option
for UPS operation
●
Protects against blackouts,
surges and EMI/RFI line noise
●
Rugged steel housing resists
moisture and impact
●
Package Includes
APSX3024SW 3000W APS X
Series 24V DC 230V AC
Inverter/Charger
●
● Owner’s manual
Description
The APSX3024SW 3000W APS X Series 24V DC 230V AC Inverter/Charger is a reliable power source for
a wide variety of power tools, computers, audio/video components and other sensitive electronics at
mobile, emergency and remote sites. With no fumes, fuel or excess noise, it’s an excellent alternative to
generator power.
The DC-to-AC pure sine-wave inverter delivers network-grade power to sensitive electronics. Its automatic
line-to-battery transfer switch and integrated charging system allow the unit to work as a vehicle inverter,
standalone AC power source or extended-run UPS. It delivers 3000W of continuous power, 4500W up to
one minute or 6000W of peak power up to 10 seconds during equipment startup or cycling. An automatic
overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, commercial and fleet vehicles and emergency vehicles, the
APSX3024SW converts stored power from any 24V battery or automotive DC source to safe, stable,
computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit
keeps the user-supplied battery charged via a three-stage 23/90A selectable charging system while
simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX3024SW responds to blackouts and brownouts with an automatic,
instantaneous transfer to battery-derived AC output. LEDs on the unit indicate load percentage and
battery charge level.
Features
Reliable Power for Mobile, Emergency and Remote Sites
● Generates 230V pure sine-wave power from 24V battery bank
Ideal for powering variable-speed tools, computers, LEDs, fans, audio/video components and other
sensitive electronics
●
Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and
construction equipment
●
● Functions as vehicle inverter, standalone AC power source or extended-run UPS
● Unlimited runtime with variety of user-supplied batteries
3000W of continuous power
● 4500W of reserve power up to 1 min.
6000W of peak power up to 10 sec. to accommodate surge power demands during equipment startup
and cycling
●
Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from
damage
●
● High-current DC input terminals for simple hardwired installation
