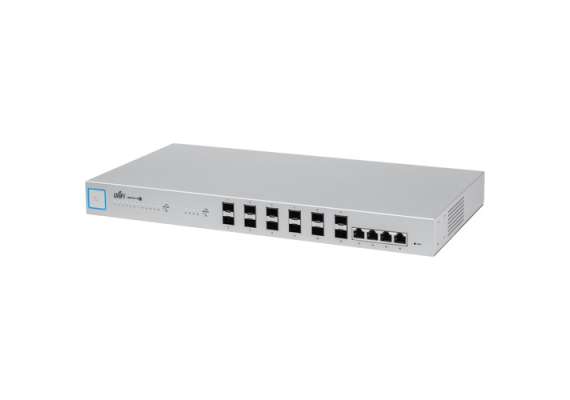

Ubiquiti Networks US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch

Provide high-bandwidth aggregation connectivity to multiple switches in your network with the US-16-XG Unifi Switch 16 10G 16-Port Managed Aggregation Switch from Ubiquiti Networks. The switch comes equipped with twelve 10G SFP+ ports, four 10G RJ-45 Ethernet ports, and a single RJ-45 serial console port making it easy to connect multiple switches directly to the US-16-XG switch. Once configured, users benefit from a non-blocking throughput of 160 Gbps, a switching capacity of 320 Gbps, and a forwarding rate of 238.10 Mpps to ensure the Ubiquiti Networks Aggregation Switch can handle even the most demanding network environments.

Included with this Ubiquiti Networks switch is their own UniFi Controller software designed to simplify the management of everything from site management to switch configuration. A single network administrator can manage multiple sites from a single location using a centralized interface. The UniFi Controller software also makes it easy to access any managed UniFi Switch and configure settings including network/VLAN configuration, operating modes, storm control settings per port, 802.1x control and RADIUS VLAN, and much more. It is also possible to see the status of each port including connection speeds, Tx/Rx data rates, and network/VLAN settings.
