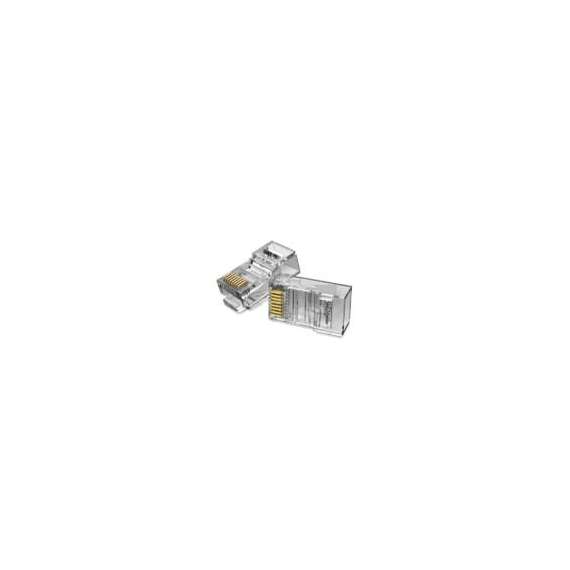

Vention Cat6A UTP RJ45 Modular Plug
IDFR0-100
Description
Technical Specifications
Connector Standards
Category: Cat.6A
Compliance: TIA/EIA-568-C.2, ISO/IEC 11801-2
Interface: 8P8C (RJ45)
Wiring Standards: T568A, T568B compatible
Performance Characteristics
Bandwidth: 500 MHz
Data Rate Support: Up to 10 Gbps (10GBASE-T)
Impedance: 100 ohms ± 15%
Insertion Loss: ≤0.4 dB at 500 MHz
Return Loss: ≥10 dB (1-500 MHz)
Contact Specifications
Contact Material: Phosphor bronze
Contact Plating: 50 microinch gold over nickel
Contact Configuration: 3-point contact design
Contact Resistance: ≤20 milliohms initial
Cable Compatibility
Cable Type: UTP (Unshielded Twisted Pair)
Conductor Gauge: 22-26 AWG
Conductor Type: Solid or stranded copper
Cable Diameter: 5.0-8.5 mm
Features
Condition
- New
Warranty Issuer
- Manufacturer
