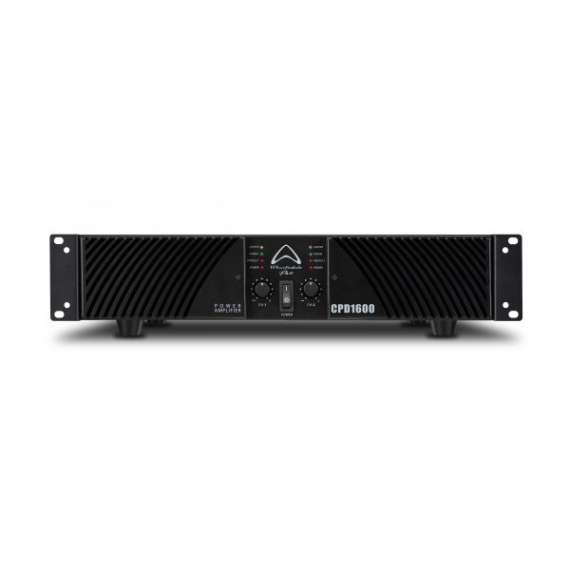

Wharfedale Pro CPD 1600 Power Amplifier
CPD1600
Stereo Power Output: RMS
8Ω x 2 400W
4Ω x 2 620W
Bridged Mono Power Output: RMS
8Ω 1200W
Frequency Response: 20Hz – 30kHz
Topology Class: AB
Inputs: 2 x XLR
Outputs: 2 x NL4, 2 x XLR
Sensitivity: 0dBu (0.775Vrms)
Balanced XLR input: 20KΩ
Maximum Input Level: 22dBu (9.7Vrms)
Voltage Gain: 37dB
Slew Rate: >40V / us
Crosstalk: <-70dB
S/N: >100dB
Distortion (1W): <0.02%
Damping Factor: >300
Power, Protect, Signal, Peak Indicators
Front Panel: AC Switch, CH 1 and CH 2 Gain Knobs
Rear Panel: Parallel, Stereo & Bridge Mode Switch; Limiter Switch
Protections: Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Cooling: Variable Speed Fan
Dimensions: 88 x 483 x 330mm
Net Weight: 13kg / 28.66lbs
Gross Weight: 14.5kg / 31.96lbs
8Ω x 2 400W
4Ω x 2 620W
Bridged Mono Power Output: RMS
8Ω 1200W
Frequency Response: 20Hz – 30kHz
Topology Class: AB
Inputs: 2 x XLR
Outputs: 2 x NL4, 2 x XLR
Sensitivity: 0dBu (0.775Vrms)
Balanced XLR input: 20KΩ
Maximum Input Level: 22dBu (9.7Vrms)
Voltage Gain: 37dB
Slew Rate: >40V / us
Crosstalk: <-70dB
S/N: >100dB
Distortion (1W): <0.02%
Damping Factor: >300
Power, Protect, Signal, Peak Indicators
Front Panel: AC Switch, CH 1 and CH 2 Gain Knobs
Rear Panel: Parallel, Stereo & Bridge Mode Switch; Limiter Switch
Protections: Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Cooling: Variable Speed Fan
Dimensions: 88 x 483 x 330mm
Net Weight: 13kg / 28.66lbs
Gross Weight: 14.5kg / 31.96lbs
