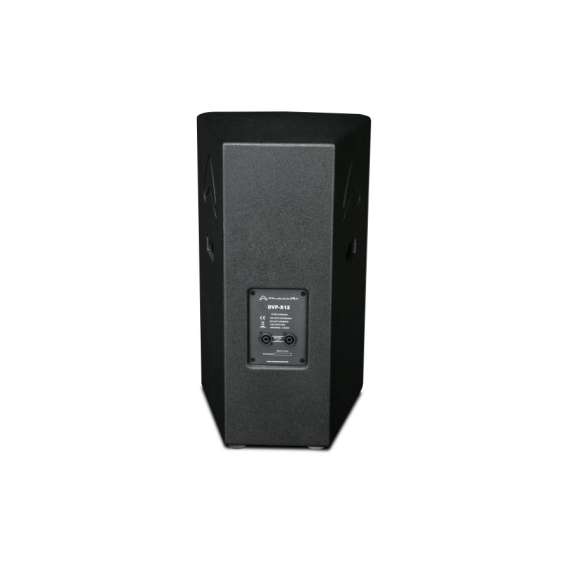

Wharfedale Pro DVP-X12 Midrange PA Speaker
DVP-X12
System Type: Passive
Configuration: Two-way
Frequency Response (+/-3dB): 60-18kHz
Frequency Range (-10 dB): 55-20kHz
Sensitivity (2.83v/1m): 98dB
Calculated Maximum SPL @1m: 129dB
System Rated Impedance: 8Ω
Low Frequency Transducer
Size: 305mm / 12″
Voice Coil Size: 65mm / 2.5″
Rated Impedance: 8Ω
LF Power (re:AES2-2012): 300W
High Frequency Transducer
HF Driver Type: IRIS X Compression Driver
Voice Coil Size: 44.5mm / 1.75″
Exit Size: 25mm / 1″
Diaphragm Material: Titanium
Rated Impedance: 8Ω
HF Power (re:AES2-2012): 40W
Nominal Coverage (H x V): 90⁰ x 60⁰
Power
System Continuous Power: 300W
System Programme Power: 600W
System Peak Power: 1200W
Crossover frequency: 2.2kHz
Input Connector: 2 x NL4 (speakON Compatible) + 1/4″ Jack combo
Hardware
Pole Mount: Dual Angle (0⁰ / 10⁰) 35mm pole Socket
Handles: 2 on Sides
Enclosure
Enclosure Material: MDF / Highest grade Rhino Rock
Finish: black paint
Grille Material & Finish: Steel
Dimensions
Height: 617mm / 24.3″
Width Front: 361.2mm / 14.2″
Width Rear: 207.6mm / 8.2″
Depth: 342.4mm / 13.5″
Configuration: Two-way
Frequency Response (+/-3dB): 60-18kHz
Frequency Range (-10 dB): 55-20kHz
Sensitivity (2.83v/1m): 98dB
Calculated Maximum SPL @1m: 129dB
System Rated Impedance: 8Ω
Low Frequency Transducer
Size: 305mm / 12″
Voice Coil Size: 65mm / 2.5″
Rated Impedance: 8Ω
LF Power (re:AES2-2012): 300W
High Frequency Transducer
HF Driver Type: IRIS X Compression Driver
Voice Coil Size: 44.5mm / 1.75″
Exit Size: 25mm / 1″
Diaphragm Material: Titanium
Rated Impedance: 8Ω
HF Power (re:AES2-2012): 40W
Nominal Coverage (H x V): 90⁰ x 60⁰
Power
System Continuous Power: 300W
System Programme Power: 600W
System Peak Power: 1200W
Crossover frequency: 2.2kHz
Input Connector: 2 x NL4 (speakON Compatible) + 1/4″ Jack combo
Hardware
Pole Mount: Dual Angle (0⁰ / 10⁰) 35mm pole Socket
Handles: 2 on Sides
Enclosure
Enclosure Material: MDF / Highest grade Rhino Rock
Finish: black paint
Grille Material & Finish: Steel
Dimensions
Height: 617mm / 24.3″
Width Front: 361.2mm / 14.2″
Width Rear: 207.6mm / 8.2″
Depth: 342.4mm / 13.5″
