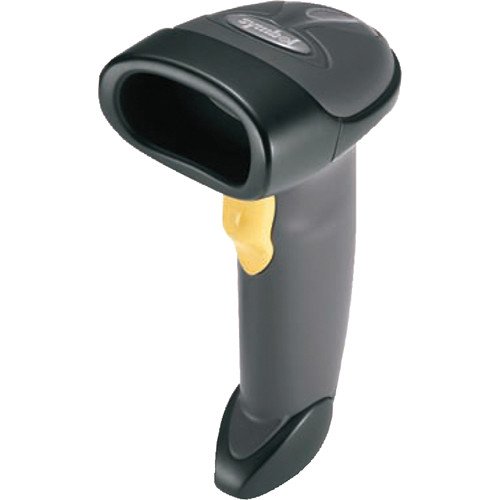

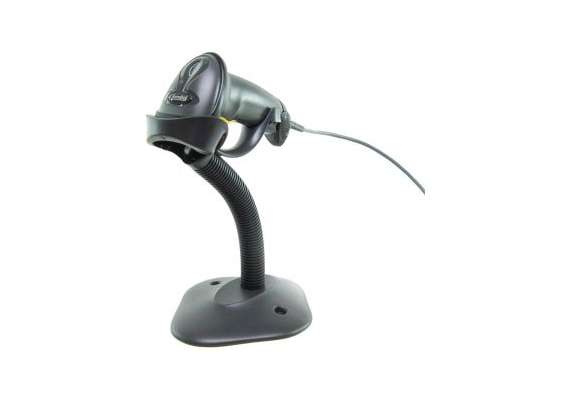

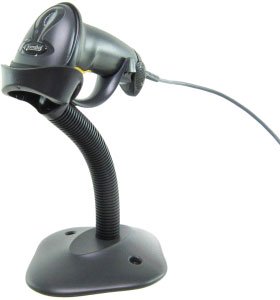

Zebra LS2208-SR20007R-UR Barcode Scanner

Overview

Enterprise class 1D scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range.
Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator (a blinking laser line), a beep tone, a red/green LED indicator — or any combination of the three.
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.
Truly plug-and-play — the universal cable connects to any computing environment, practically eliminating setup and training time.
Complimentary Tools for Easy Deployment and Management across an enterprise

Specification

Physical Characteristics

Dimensions 6.0 in. H x 2.5 in. W x 3.3 in. D
15.2 cm. H x 6.4 cm. W x 8.5 cm. D
Weight 5.3 oz./150.0 g
Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to
5.5 VDC external power supply
Operating Current at Nominal
Voltage (5.0V)
175 mA (typical)
Standby Current (idle) at
Nominal Voltage (5.0V)
90 mA (typical)

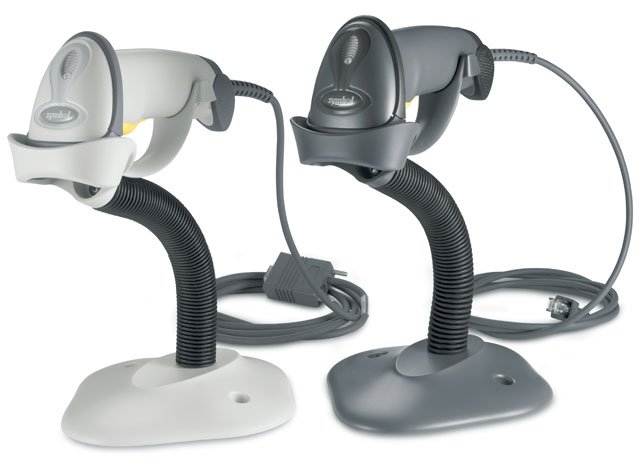

Color Cash Register White, Twilight Black
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS
(IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
User Indicators Direct decode indicator, good decode
LEDs, beeper (adjustable tone/volume)

Performance Characteristics

Light Source 650 nm Laser Diode Class 2
Scan Pattern Single line
Scan Speed 100 scans per second
Scan Angle 35°
Minimum Print Contrast 20% minimum reflective difference
Skew Tolerance ± 10°
Pitch Tolerance ± 65°
Roll Tolerance ± 60°

User Environment

Operating Temperature 32° to 122° F/0° to 50° C
Storage Temperature -40° to 158° F/-40° to 70° C
Humidity 5% - 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at
5.0 ft./1.5 m to concrete
Tumble Specification Designed to withstand 500 tumbles in
1.64 ft./0.5 m tumbler
Environmental Sealing IP30
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8
KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 8,000 Foot Candles / 0 to 86,080
Lux; tolerant to typical artificial indoor
and natural outdoor (direct sunlight)
lighting conditions; Fluorescent,
Incandescent, Mercury Vapor, Sodium
Vapor, LED4: 450 Ft. Candles (4,844 Lux)
Sunlight: 8000 Ft. Candles (86,111 Lux)

Symbol Decode Capability

Scanning Technology Code 39, Code 128, Code 93, Codabar/
NW7, Code 11, MSI Plessey, UPC/EAN, I
2 of 5, Korean 3 of 5, GS1 DataBar, Base
32 (Italian Pharma). Refer to Product
Reference Guide for complete list of
symbologies.
Minimum Element Resolution Code 39: 3.0 mil
